SKU : MXBH

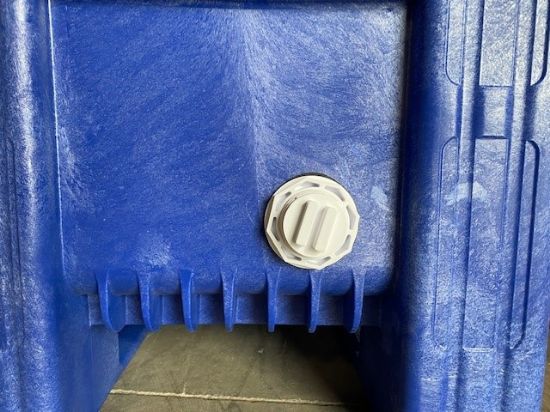

1-1/2'' White FNPT Bulkhead Fitting with Plug for MX and Dolav Bins - Installed

91,93 $
Sold : 1 Unit
Dimensions and characteristics below

CHARACTERISTICS

SKU : MXBH
  • Attribute name Attribute value
  • Description Pass-through with plug
  • Diameter 1.5" Int. / 3.5" Ext.
  • Color White

DESCRIPTION

Bulkhead fitting designed for MX and Dolav series pallet boxes.
Installation is included in the price

* Can be installed on the short or long side of the pallet box – To be specified when purchasing

  • The bulkhead fitting comes with a screw cap and 2 gaskets (inner and outer)
  • The installation includes drilling the hole and cleaning the pallet box
  • Once installed, the bulkhead fitting sticks out 1″ from the pallet box (including the plug)
  • On an MX pallet box, the bulkhead fitting is installed approximately 1-3/4″ center from the bottom
  • On a Dolav pallet box, the bulkhead fitting is installed approximately 2-1/4″ center from the bottom
  • Internal diameter: 1-1/2″
  • The threads allow the cap to be unscrewed and replaced by a ball valve (Female NPT Threads
  • Material: PVC
