Potable Water Hoses

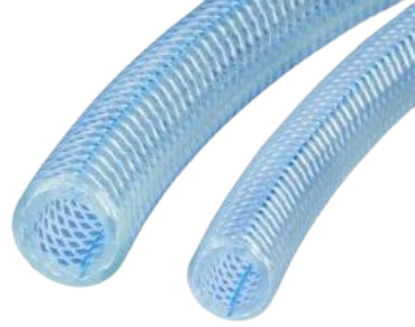

Reinforced flexible PVC potable water hoses

To carry water intended for human consumption, choose a hose designed for that use. At Agrico Plastics, our potable water hoses are made of clear flexible PVC with a slight blue tint and polyester reinforcement. Their inner tube is formulated with FDA-compliant ingredients and is phthalate-free.

This range is part of our industrial hoses. It is suitable for potable water lines and can be considered for certain food applications once the liquid and operating conditions have been assessed.

Transparent construction to see the liquid

Transparency allows you to observe the contents flowing through the hose and visually identify certain blockages. Polyester reinforcement provides pressure resistance, while the smooth outer cover resists abrasion and weathering.

These features are useful for water supply and certain food processing operations. However, installation requirements still need to be checked. A food grade hose must also suit the temperature, pressure and product being carried.

Transparency alone does not establish food compliance or circuit cleanliness. Visibility of the liquid and material compatibility are separate considerations.

Choose the appropriate diameter and length

The range includes diameters of 1/2", 3/4", 1", 1-1/2" and 2". Hoses are sold by the linear foot; rolls are also available depending on the diameter.

We select the diameter based on the installation and existing connections. Do not assume that a larger hose has a higher pressure rating: allowable pressures in this range vary with diameter.

The length must also match the actual route between equipment. Before ordering, specify the connections at both ends and the handling conditions. For tank applications, we consider the hose as part of the complete circuit.

Hot water: assess temperature and pressure together

Hoses in this range have an operating temperature range of −5 °C to 65 °C. This upper limit does not mean the hose can operate at its maximum pressure at every temperature.

An important consideration for installations: allowable pressure decreases as temperature rises. Room-temperature ratings must therefore not be applied automatically to a hot water line.

We check the actual operating conditions of the selected hose, including temperatures it will encounter during cleaning. Fitting and seal compatibility must also be confirmed.

Potable water, food liquids or other uses?

For potable water

Choose this range when the water is intended for human consumption. Connections and other components in contact with the water must also be suitable for the application.

For a food liquid

These hoses can be considered for certain juice and beverage lines and other food applications. Each liquid still needs to be assessed: material compliance with FDA requirements does not mean compatibility with every ingredient, concentration or cleaning product.

For an installation with a pump

We check whether the hose will be used for discharge, suction or both. Food suitability and suction resistance are two separate characteristics.

For a non-food application requiring suction, consider our liquid suction and discharge hoses. For simple discharge of water not intended for consumption, our discharge hoses can be assessed.

Plan for compatible accessories

Depending on the connections, we can guide you toward hose barb adapters, Camlock fittings and hose clamps.

If the circuit includes ball valves or bulkhead fittings, their materials and seals must also be assessed. A connection that fits mechanically does not establish full compatibility.

Frequently asked questions

Can these hoses carry hot water?

Yes, within their operating limits. We check temperature and pressure together for the selected diameter.

Can they be used to draw in potable water?

The application must be assessed based on suction conditions. The designation “potable water” alone does not confirm the required vacuum resistance.

Are they compatible with all food processing cleaning products?

No. The product, its concentration and its temperature must be checked before circulating a cleaning solution.
