Pallet Boxes on Casters

Plastic Pallet Boxes on Casters

Plastic pallet boxes on casters are designed to handle, store and move food, agricultural or industrial products without requiring a forklift for every movement. They are particularly suitable for food processing operations, businesses in the agricultural sector, as well as warehouses and distribution centres.

The models presented have a 40 in × 48 in base and a volume capacity of 719 litres. They are manufactured from injection-moulded high-density polyethylene treated for UV resistance. They are CFIA-approved for food applications and manufactured with materials that comply with FDA requirements.

Each pallet box is equipped with 6 in casters, including two fixed casters and two swivel casters with brakes. Depending on the model, the casters are installed at the four corners or in a cross pattern under the pallet box. This difference determines the load capacity and whether the pallet boxes can be stacked.

Comparison of the MXRC, MXVRC and MXRE Series

The MXRC and MXVRC models weigh 120 lb. The MXRE models weigh 150 lb because of their caster system and metal supports.

The stated capacities assume that the load is properly distributed. The actual product weight, load distribution, temperature, duration of use, caster condition and operating environment must also be considered.

Why Choose a Pallet Box on Casters?

Make Movement Within the Facility Easier

The casters allow the pallet box to be moved between receiving, preparation, processing, storage and washing areas without requiring a forklift for every movement.

This mobility can simplify the supply of materials to workstations and reduce intermediate handling. The travel distance, transported weight, movement frequency and floor condition must still be evaluated.

Move Loads Across Different Floor Surfaces

The 6 in casters make the pallet boxes easier to move across a level and unobstructed industrial floor. Thresholds, floor joints, drains, slopes and debris can increase the effort required, destabilize the load or damage the casters.

A loaded pallet box should not be moved on a slope without an appropriate control method. The brakes are designed to secure the pallet box while it is stationary, but they do not replace a safe movement procedure.

Integrate the Pallet Boxes Into Food Operations

The smooth interior surfaces of the solid-wall models simplify cleaning. The pallet boxes can be washed manually, with a pressure washer or in an industrial washing system.

The water pressure and temperature, cleaning products and distance from the nozzle must comply with the facility’s sanitation procedures. The casters, brakes, axles and metal supports must also be inspected and cleaned according to their exposure to products and residue.

Corner Casters or Cross-Pattern Casters?

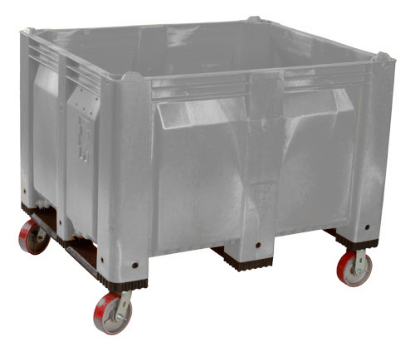

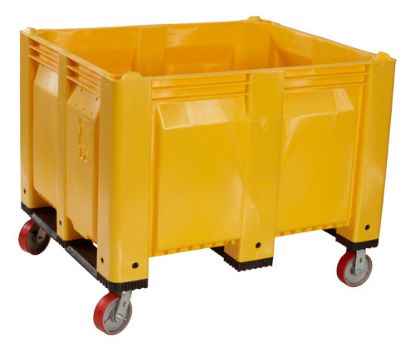

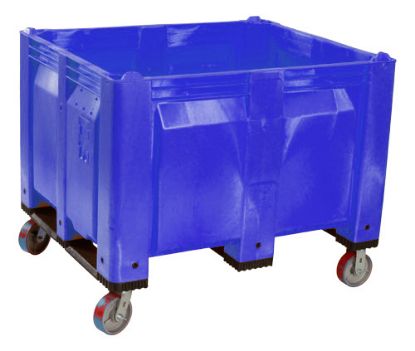

Casters Installed at the Four Corners

The MXRC and MXVRC series use four casters installed at the corners of the pallet box. This configuration is suitable for applications requiring mobility but not stacking.

These models have a load capacity of 1,000 lb and are not stackable. They can be used to supply workstations, move ingredients, collect products or travel between different production areas.

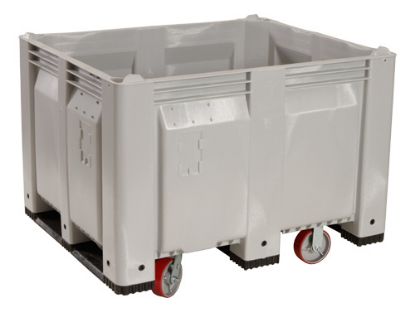

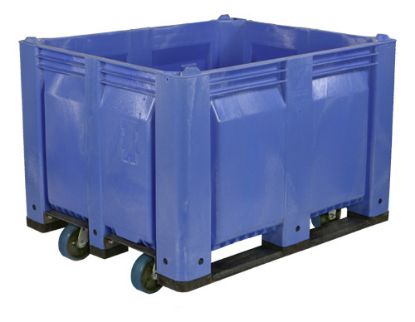

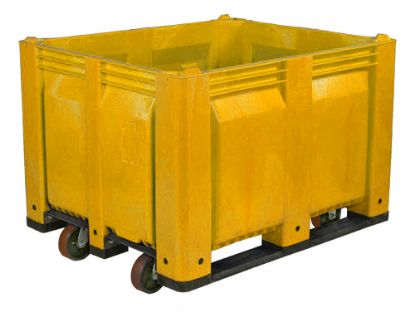

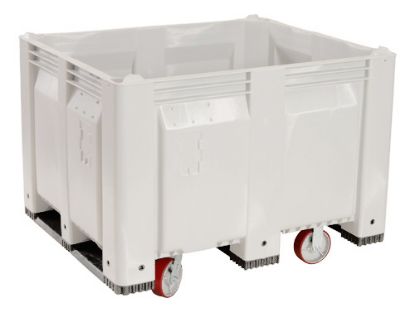

Casters Installed in a Cross Pattern

The MXRE series uses metal supports and casters arranged in a cross pattern under the pallet box. This construction leaves the required support points available for stacking.

The MXRE models have a load capacity of 1,500 lb. They can be stacked up to ten pallet boxes high without lids, and the bottom pallet box can support up to 4,000 lb.

These limits should not be applied automatically to every situation. The safe stacking height depends on the weight of each pallet box, load distribution, floor stability, temperature, storage duration and movement around the stack.

Solid or Vented Walls?

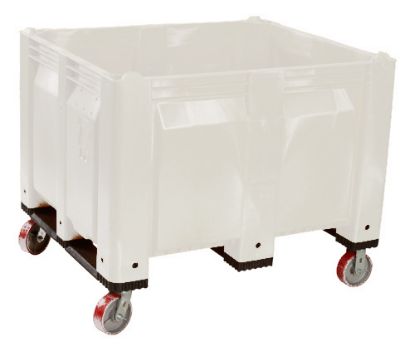

MXRC and MXRE Models With Solid Walls

The MXRC and MXRE models have solid walls and a solid bottom. They are suitable for solid products, ingredients, wet products and certain compatible liquids.

Their solid surfaces retain the contents and provide better protection against dust, debris and surrounding contaminants. To compare similar stationary models, see our plastic pallet boxes with solid walls and bottom.

Before using a pallet box for liquids, confirm the product’s compatibility with the polyethylene, drain and other components. The weight of the liquid must also be calculated because a dense product can reach the load capacity before the pallet box is filled to its maximum volume.

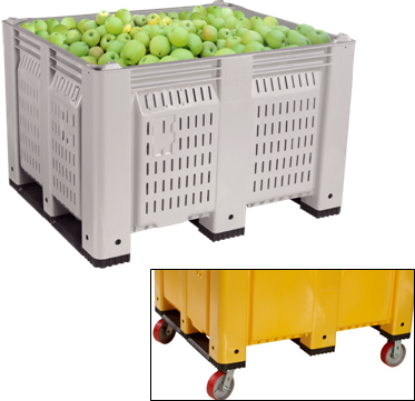

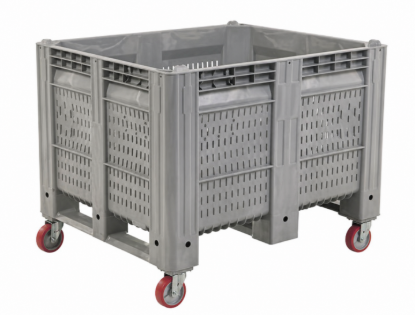

MXVRC Model With Vented Walls

The MXVRC model has vented walls and a vented bottom that promote airflow, drainage and water runoff.

It is suitable for products that require ventilation, washing, drainage or more efficient cooling. It must not be used to retain liquids. The size of the products must also be compatible with the openings.

To view stationary models, see our plastic pallet boxes with vented walls and bottom.

How to Choose the Right Model

The Product Being Transported

The type of product determines whether solid or vented walls are required. Solid walls retain the contents, while vented walls promote airflow and water drainage.

The compatibility of the polyethylene with the ingredients, chemicals, cleaning agents and operating conditions must be confirmed before purchase.

The Actual Weight of the Contents

The models with corner casters have a load capacity of 1,000 lb. The models with cross-pattern casters have a load capacity of 1,500 lb.

The 719-litre volume does not determine the actual transported weight. Calculate the weight of the product and any added liquid, then consider how the load will be distributed inside the pallet box.

Stacking Requirements

If the pallet boxes must be stacked, the MXRC and MXVRC models should be eliminated from consideration. An MXRE model must be selected, and the stacking configuration must be validated according to the actual load and operating conditions.

A stated stacking capacity does not guarantee that the maximum height is suitable for every environment or load.

Travel Distance and Movement Frequency

Check the travel distance, aisle width, doorways, slopes, thresholds, floor joints and available space required to turn the pallet box.

A 40 in × 48 in pallet box loaded with 1,000 or 1,500 lb can require considerable effort to start or stop. The movement method must therefore be evaluated according to the load, floor condition and movement frequency.

Access to the Contents

The interior dimensions are 36.7 in × 45 in × 25.7 in. Confirm that employees can reach the bottom of the pallet box without adopting a physically demanding posture, especially when products are removed frequently.

Handling, Cleaning and Inspection

The operating temperature range is -28 °C to 49 °C. This range does not automatically guarantee compatibility with every product, process or environment.

The pallet boxes provide four-way forklift access. The forks must be properly spaced and fully inserted before lifting. The total weight of the pallet box and the load’s centre of gravity must be considered.

Before each use, inspect the walls, bottom, casters, brakes, axles and supports. A caster that does not rotate properly, a defective brake, a deformed support or a cracked pallet box can make movement or stacking unsafe.

Frequently Asked Questions

Are All Pallet Boxes on Casters Stackable?

No. The MXRC and MXVRC models with casters at the four corners are not stackable. The MXRE models with cross-pattern casters are designed for stacking, subject to the load limits and actual operating conditions.

What Is the Capacity of These Pallet Boxes?

All three series provide a volume capacity of 719 litres. The MXRC and MXVRC models have a load capacity of 1,000 lb, while the MXRE models have a load capacity of 1,500 lb.

Can They Hold Liquids?

The MXRC and MXRE models with solid walls and bottom can retain certain compatible liquids. Chemical compatibility must be confirmed, and the liquid weight must be calculated. The vented MXVRC model cannot retain liquids.

Are the Casters Equipped With Brakes?

Yes. The configurations presented include two fixed casters and two swivel casters with brakes.

Can They Be Moved With a Forklift?

Yes. These pallet boxes provide four-way forklift access. The forks must be positioned correctly before lifting the pallet box.

Can These Pallet Boxes Be Used Outdoors?

Yes. The polyethylene is treated for UV resistance. The load, temperature, exposure time, caster condition and ground conditions must still be considered.

Which Configuration Should You Choose?

Choose an MXRC model when the contents must be retained and stacking is not required. Choose an MXVRC model when ventilation and drainage are priorities. Choose an MXRE model when a higher load capacity and stacking are required.

To compare the other available constructions, see our complete range of plastic pallet boxes and bulk containers.

How Can You Obtain a Recommendation?

Tell us about the product being transported, its weight, ventilation or containment requirements, movement frequency, floor type and planned stacking configuration.
