An elbow fitting changes the direction of a line without unnecessarily bending the hose or altering the installation. Depending on the available space and liquid flow path, a 45° elbow can provide a more gradual change in direction, while a 90° elbow provides a sharper directional change.
The elbow fittings offered by Agrico Plastics are made of glass-reinforced polypropylene with a Schedule 80 construction. They are used in plastic tank, piping and liquid-transfer installations when the material and operating conditions are compatible.
This category includes NPT threaded fittings from 1/2" to 3", depending on the configuration selected.
The choice depends on more than the available space. Consider how the line needs to leave the tank or route around nearby equipment.
A 90° elbow provides a complete change in direction in a relatively compact space. For example, it can be useful when a horizontal outlet needs to be redirected downward or when a line must run alongside a tank.
A 45° elbow provides a less pronounced change in direction. Depending on the installation, it can create a more gradual path and avoid an abrupt directional change.
Before choosing, also consider the space required to install and thread the fitting. A fitting that is technically compatible can still be difficult to install if a wall, tank or other component prevents it from being rotated into position.
Not all elbows in this category have the same end connections.

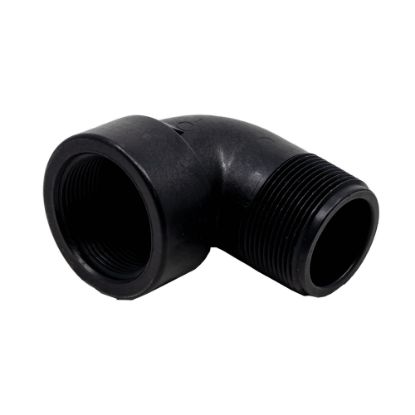

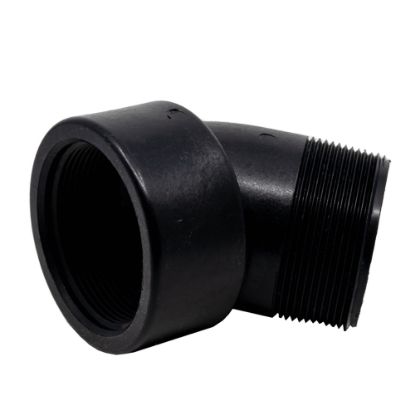

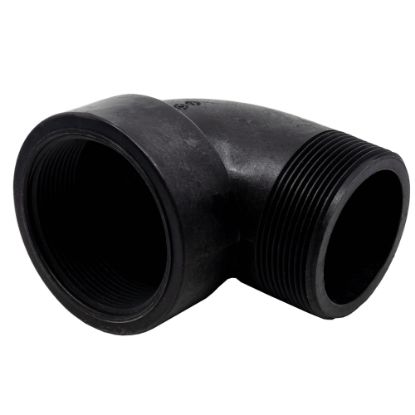

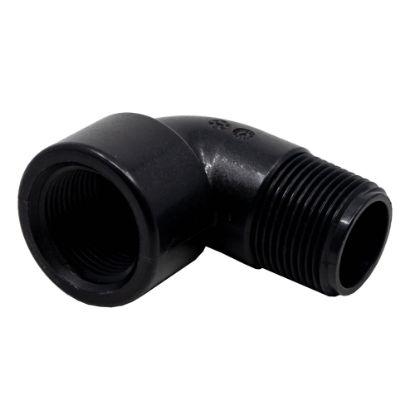

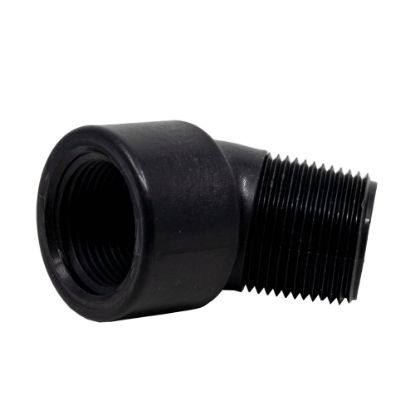

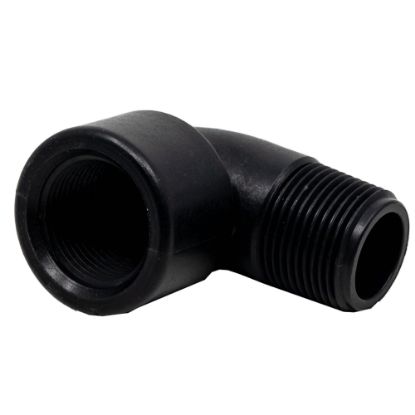

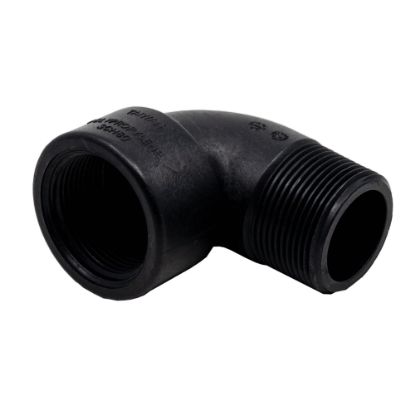

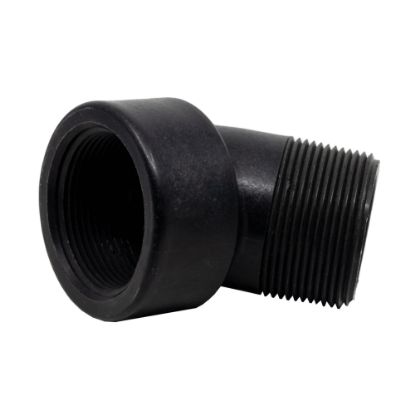

The 45° models use male x female NPT connections. Most of the available 90° models are also male x female. This configuration allows the male end to thread directly into a female fitting while retaining a female outlet for the next component.

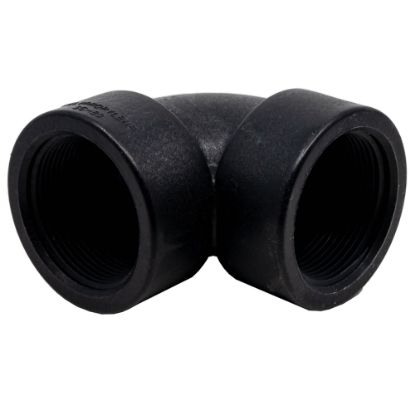

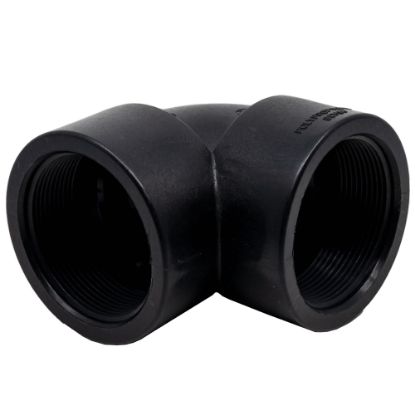

Agrico also offers selected 90° female x female NPT elbows. These require an appropriate male connection on both sides, such as an existing fitting, a male x male threaded pipe nipple or another suitable component.
| Configuration | Diameters currently offered (in) | What to check before choosing |
|---|---|---|
| 45° NPT male x female | 1, 1-1/2, 2 | Required angle, available space and connection to be joined |
| 90° NPT male x female | 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 3 | Outlet orientation and existing connection type |
| 90° NPT female x female | 1-1/2, 2 | Availability of an appropriate male connection on each side |
These reinforced polypropylene threaded fittings are designed for the following recommended operating conditions:
Pressure should therefore not be evaluated independently of temperature. An installation operating at an elevated temperature should not be assessed using only the maximum 150 PSI value.
Polypropylene compatibility with the liquid being transferred must also be verified. Having the correct diameter and thread does not by itself confirm that a fitting is suitable for the liquid, temperature and actual operating conditions.
All fittings in this category use NPT threads. Before ordering, verify the thread standard of the component to which the elbow will be connected.
Two fittings that appear to have the same nominal diameter are not necessarily compatible if they use different thread standards. You must also correctly identify whether the existing connection is male or female.
If the diameter needs to change within the same installation, a male x female threaded reducer bushing or a male x male threaded reducer nipple may be required. To connect to a flexible line, consider a hose barb fitting adapter and then select the appropriate industrial hose for the application.
Bulkhead tank fittings, ball valves and Camlock fittings may also be part of the assembly depending on the tank and connection required.
Yes, if the connection type, diameter, thread and material are compatible. Also make sure there is enough space around the outlet to thread and orient the elbow correctly. Depending on the configuration, a nipple, reducer or another intermediate fitting may be required.
A male x female elbow has one male threaded end and one female threaded end. A female x female elbow has two female connections and therefore requires suitable male connections.
The 150 PSI value applies to the recommended operating conditions at 21 °C. The recommended pressure changes with temperature: 120 PSI at -17 °C and 90 PSI at 65 °C. Actual operating conditions must therefore be considered rather than relying only on the highest pressure value.
An elbow is a small component, but the wrong combination of diameter, thread or orientation can complicate the entire connection. For a tank installation, consider the complete path: tank outlet, valve, fittings, change of direction, hose and final connection. Agrico Plastics can help you verify the components required for your installation. Consult our technical support service.
