Pallet Box Bin Cart

Cart for 40×48 in Pallet Boxes

The steel pallet box cart makes it possible to move a compatible pallet box within a facility without using a forklift for every movement. It is particularly suitable for production, storage, order preparation and material-handling areas where pallet boxes must regularly circulate between different workstations.

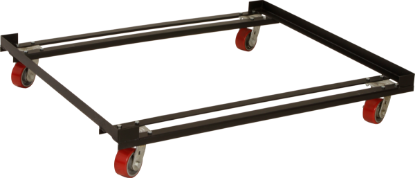

The MX4048C model is designed to accommodate certain nominal 40×48 in MX and Dolav pallet boxes. Its painted steel frame measures 41×49 in to support the base of the pallet box. It is equipped with four 4 in swivel casters and has a load capacity of 1,500 lb.

This cart is a mobile base separate from the pallet box. It should not be confused with pallet boxes on casters, whose casters are installed directly under the pallet box.

MX4048C Cart Specifications

The load capacity is based on an evenly distributed load and use on a firm, level surface. Floor conditions, load distribution, movement, impacts and the condition of the casters can affect the actual usable capacity.

Why Use a Cart Under a Pallet Box?

Reduce Forklift Use

When a pallet box must be moved frequently over short distances, a mobile base can eliminate the need to use a forklift for every movement.

This solution can make it easier to move products between receiving, production, storage, washing and shipping areas. It is particularly useful in facilities where pallet boxes must be positioned near workstations or moved as operations progress.

Make It Easier to Position the Pallet Box

The four swivel casters allow the cart to change direction in a confined space. This manoeuvrability can make it easier to position the pallet box near a preparation station, production line or storage area.

However, sufficient space must be provided to turn a 40×48 in pallet box. Walls, equipment, drains, columns and other obstacles can limit the turning radius.

Use a Separate Mobile Base

The cart is independent of the pallet box. This configuration makes it possible to keep pallet boxes stationary for storage or stacking and use a mobile base when movement across the floor is required.

However, the exact pallet box model must be compatible with the cart frame. A pallet box described as measuring 40×48 in is not automatically compatible.

Compatibility With MX and Dolav Pallet Boxes

The MX4048C cart is intended for certain nominal 40×48 in MX and Dolav pallet boxes. Its overall dimensions of 41×49 in provide the space required to accommodate the base of compatible models.

Nominal dimensions alone are not sufficient to confirm compatibility. Ribs, feet, runners and support points under the pallet box can vary from one series to another.

Before ordering, verify:

• The pallet box model number;
• The outside dimensions of its base;
• The position of its feet or runners;
• The areas that will rest on the cart;
• The total weight of the pallet box and its contents;
• The floor conditions and intended route.

A PE875, KX, TS or other pallet box series should not be placed on this cart solely because it has nominal dimensions of 40×48 in.

To compare compatible models, see our solid-wall and solid-bottom pallet boxes or browse all our plastic pallet boxes and bulk containers.

Load Capacity and Moving Effort

The cart has a load capacity of 1,500 lb when the weight is evenly distributed. This value represents the stated structural capacity. It does not mean that a 1,500 lb load can be moved manually without effort or risk.

The effort required to start, steer and stop the cart depends in particular on:

• The actual weight of the pallet box and its contents;
• The distribution of the load;
• The condition and diameter of the casters;
• The type of flooring;
• The presence of joints, thresholds or drains;
• The slope of the route;
• The distance and frequency of movement.

A heavily loaded pallet box can become difficult to control even when its weight remains below the cart’s capacity. The moving method must be evaluated according to actual conditions and the facility’s safety procedures.

Check the Floor and Intended Route

The 4 in casters are suitable for a clean, clear, firm and level surface. Cracks, floor joints, thresholds, drains, debris and changes in floor level can block a caster or destabilize the load.

Before integrating the cart into operations, the entire intended route should be examined. Particular attention should be paid to narrow passages, doors, intersections, slopes and areas where employees or other material-handling equipment circulate.

A heavy load should not be moved on a slope without an appropriate control method. No brakes are specified for the MX4048C model. A separate method of securing the cart may therefore be required depending on the application.

Use in Food-Processing or Wet Environments

The cart is made of painted steel. The pallet box remains the container that holds the products. The cart should not be considered a food-contact surface.

In a food-processing facility, verify whether the painted steel, casters and other components are suitable for the washing procedures, humidity and cleaning products being used.

Repeated exposure to water, chemicals or impacts can damage the paint and expose the metal. The cart should be inspected regularly for flaking paint, corrosion, damaged welds or deteriorated casters.

For environments subject to frequent washing or specific sanitation requirements, the cart’s construction should be validated before purchase.

Separate Cart or Pallet Box on Casters?

The choice depends on how the pallet boxes circulate within the facility.

A separate cart may be suitable when:

• Only certain pallet boxes need to be moved across the floor;
• The pallet boxes must retain a standard base;
• The same route is used repeatedly;
• The pallet box must be removable from the mobile base;
• The facility already uses compatible MX or Dolav pallet boxes.

A pallet box with integrated casters may be preferable when permanent mobility is required and each pallet box must have its own mobile base.

Load capacities, stacking options and caster placement vary depending on the configuration. The complete operating setup should therefore be compared rather than considering only the price of the cart or pallet box.

Frequently Asked Questions

Which pallet boxes are compatible with this cart?

The MX4048C is designed for certain nominal 40×48 in MX and Dolav pallet boxes. The model number and base configuration must be verified before ordering.

Can all 40×48 in pallet boxes be used?

No. Nominal dimensions of 40×48 in do not guarantee that the pallet box’s feet, runners and support points will align with the cart frame.

What is the cart’s load capacity?

The load capacity is 1,500 lb when the weight is evenly distributed. Floor conditions, load distribution and the condition of the casters must also be taken into account.

What are the cart’s dimensions?

Its overall dimensions are 41×49 in. It weighs 58 lb.

Are the casters swivel casters?

Yes. The cart includes four 4 in swivel casters.

Do the casters have brakes?

No brakes are specified for this model. If the pallet box must be secured at a workstation or on a sloped surface, an appropriate method of immobilization must be provided.

Can a 1,500 lb load be moved manually?

The load capacity does not determine the effort required to move or stop the cart. The weight, floor conditions, obstacles, slope and frequency of movement must be evaluated before establishing a handling method.

Can the cart be used outdoors?

Outdoor use or use in a wet environment must be evaluated based on exposure to water, chemicals, temperature variations and the risk of corrosion of the painted steel.

What is the difference between this cart and a pallet box on casters?

The MX4048C is a separate mobile base placed under a compatible pallet box. A pallet box on casters has its casters integrated directly into its base.

How can compatibility be confirmed?

Provide the model number of your pallet box along with photos and the dimensions of its base. Our accompanying service can verify whether the cart is compatible with your equipment. You can also contact the Agrico Plastics specialists.
