SKU : VB150PPELD

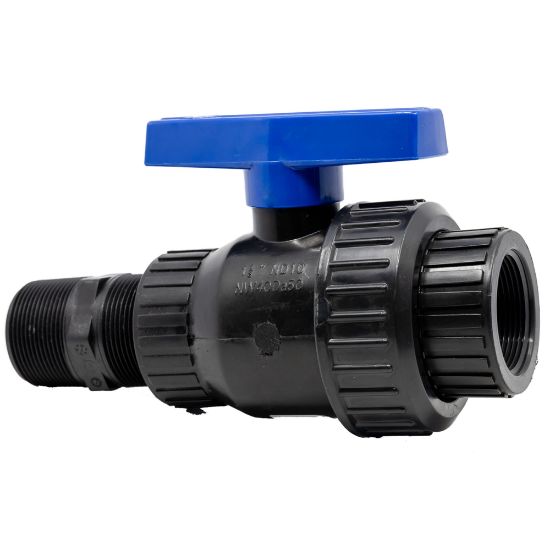

1-1/2" Polypropylene Ball Valve, Male x Fem NPT Thread, EPDM O-Ring

85,56 $
Sold : 1 Unit
Dimensions and characteristics below

Buy more and save !

QuantityPrice
3 - 583,85 $
6 - 981,28 $
10 +79,57 $

CHARACTERISTICS

SKU : VB150PPELD
  • Attribute name Attribute value
  • Diameter 1.5"
  • Seal EPDM
  • Connection Threaded Fem NPT + Male NPT NPT included
  • Material Polypropylene
  • Use Light Duty
  • Color Black

DESCRIPTION

  • Light duty ball valve for occasional use
  • Made of polypropylene
  • EPDM gasket
  • Female NPT threaded + Male NPT threaded pipe nipple included
  • Overall dimensions with nipple included (L x W x H): 8-1/2″ x 5″ x 5-1/2″
  • Maximum pressure of 125 PSI at 21°C
  • Size of opening: full port

TECHNICAL DRAWINGS

RESSOURCES
