SKU : RS150PPV

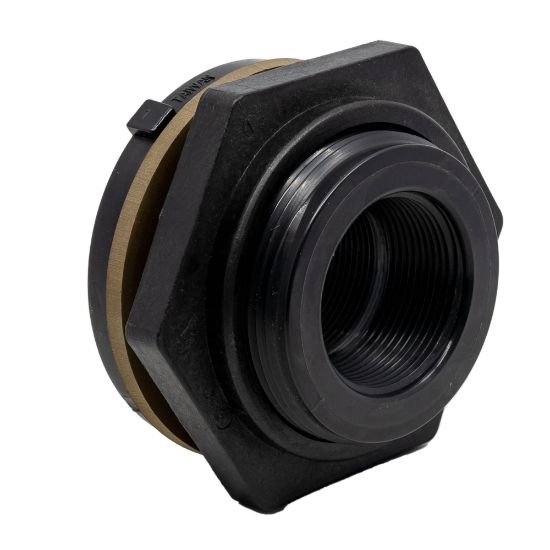

1-1/2" Fem NPT Thread Bulkhead Fitting.
Polypropylene with Viton Gasket

112,68 $
Sold : 1 Unit
Dimensions and characteristics below

CHARACTERISTICS

SKU : RS150PPV
  • Attribute name Attribute value
  • Seal Viton
  • Connection Threaded Fem-Fem
  • Diameter 1-1/2"
  • Material Polypropylene
  • Use Entrance;Drain;etc.
  • Color Black

DESCRIPTION

  • Additional bulkhead fitting
  • Made from polypropylene
  • Viton gasket
  • Female-Female NPT threaded
  • Hole saw size to drill the hole : 3″
  • Minimum fitting installation height (center – to floor): 3-3/4″
  • Dimension of flat space required to install the bulkhead fitting: 5-1/2″ x 5-1/2″ »
  • Minimum diameter of the tank to fix the fitting on the rounded wall: 48″
  • Suggested minimum space between 2 fittings (center to center): 16″
  • Torque foot lbs: 25
  • Product images are for information purposes only. Please check the product description.

TECHNICAL DRAWINGS
