SKU : RS150PVCV

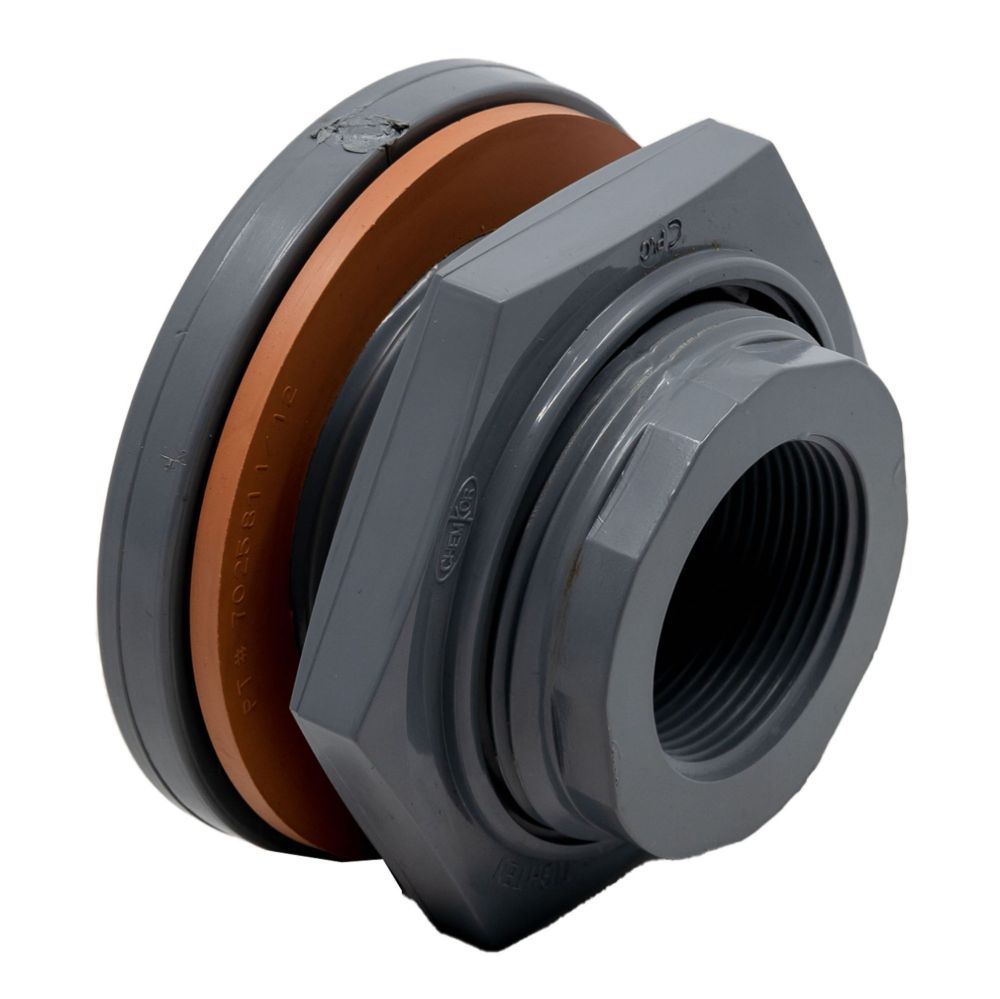

1-1/2" NPT Thread Bulkhead Fitting. PVC with Viton Gasket

125,77 $
Sold : 1 Unit
Dimensions and characteristics below

Buy more and save !

QuantityPrice
3 - 5123,25 $
6 - 9119,48 $
10 +116,97 $

CHARACTERISTICS

SKU : RS150PVCV
  • Attribute name Attribute value
  • Diameter 1-1/2"
  • Seal Viton
  • Connection Threaded Fem-Fem
  • Material PVC
  • Use Entrance;Drain;etc.
  • Color Grey

DESCRIPTION

  • Additional bulkhead fitting
  • Made from PVC
  • Viton gasket
  • Female-Female NPT threaded
  • Hole saw size to drill the hole : 3″
  • Minimum fitting installation height (center – to floor): 4-1/2″
  • Dimension of flat space required to install the bulkhead fitting: 5-1/2″ x 5-1/2″
  • Minimum diameter of the tank to fix the fitting on the rounded wall: 48″
  • Suggested minimum space between 2 fittings (center to center): 16″
  • Torque (foot-lb) : no specific torque/tightening requirements; Hand tight plus a quarter to a half turn with a non-marring strap wrench
  • Product images are for information purposes only. Please check the product description.

TECHNICAL DRAWINGS
