SKU : RS100PVCV

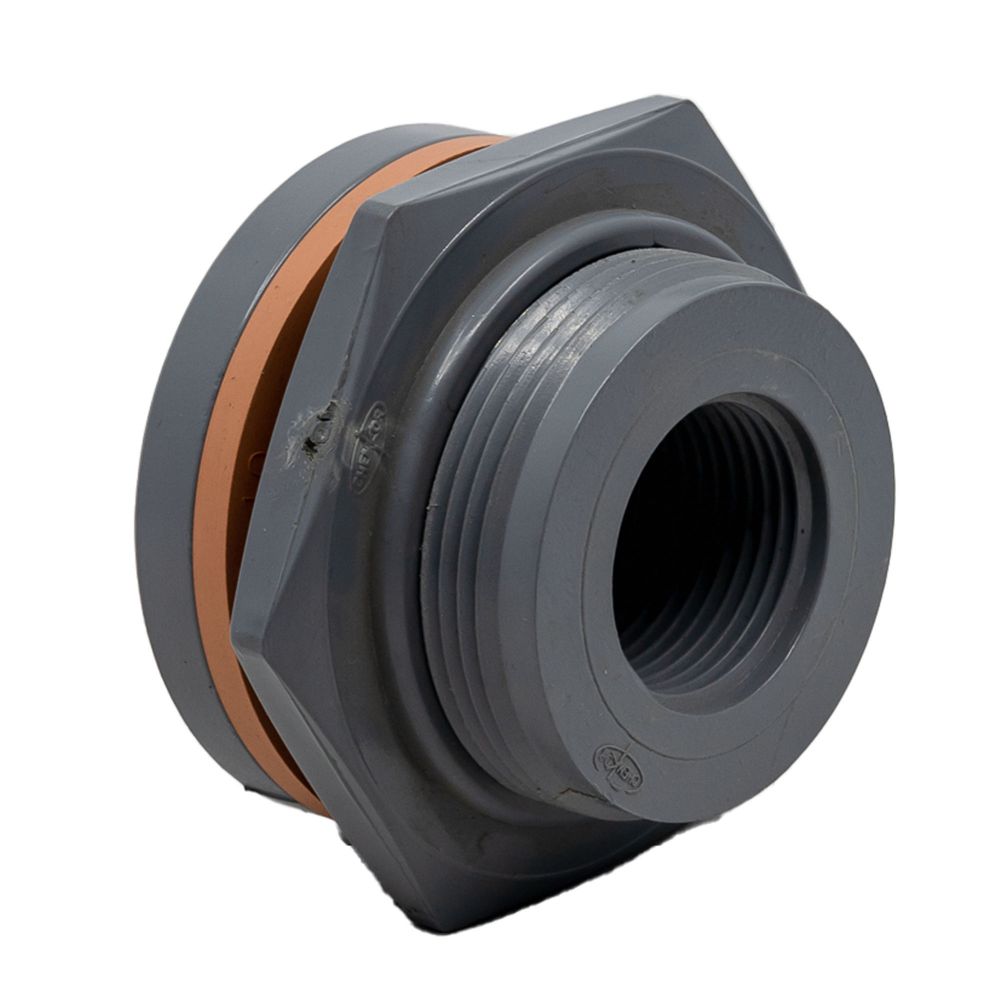

1" Fem NPT Thread Bulkhead Fitting. PVC with Viton Gasket

96,87 $
Sold : 1 Unit
Dimensions and characteristics below

Buy more and save !

QuantityPrice
3 - 594,93 $
6 - 992,03 $
10 +90,09 $

CHARACTERISTICS

SKU : RS100PVCV
  • Attribute name Attribute value
  • Diameter 1"
  • Seal Viton
  • Connection Threaded Fem-Fem
  • Material PVC
  • Use Entrance;Drain;etc.
  • Color Grey

DESCRIPTION

  • Additional bulkhead fitting
  • Made from PVC
  • Viton gasket
  • Female-Female NPT threaded
  • Hole saw size to drill the hole : 2-1/4″
  • Minimum fitting installation height (center – to floor): 2″
  • Dimension of flat space required to install the bulkhead fitting: 3-3/4″ x 3-3/4″
  • Minimum diameter of the tank to fix the fitting on the rounded wall: 30″
  • Suggested minimum space between 2 fittings (center to center): 16″
  • Torque (foot-lb) : no specific torque/tightening requirements; Hand tight plus a quarter to a half turn with a non-marring strap wrench
  • Product images are for information purposes only. Please check the product description.
