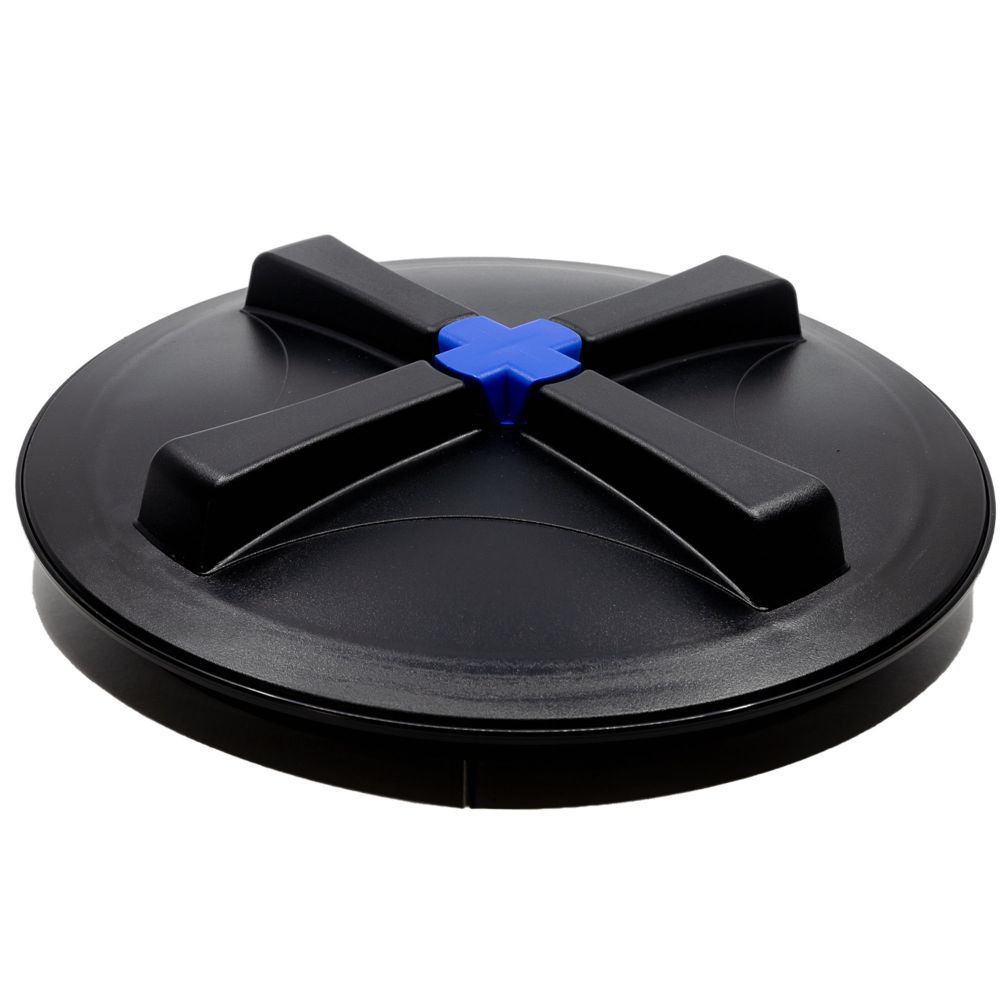

16" Screw lid with blue snap-in vent + Ring

Print screen

SKU : COUV63485

16" Screw lid with blue snap-in vent + Ring

66,08 $

Sold : 1 Unit

Qty:

Dimensions and characteristics below

Buy more and save !

Quantity	Price
3 - 5	64,76 $
6 - 9	62,78 $
10 +	61,45 $

CHARACTERISTICS

SKU : COUV63485

Attribute name Attribute value
Description Lid with vent (blue) and gasket
Made for HL;EL;VFN;FB;PCO Series
Diameter 16"
Color Black

DESCRIPTION

16" screw-on lid with blue vent
The assembly is composed of a threaded ring which must be fixed on the tank and a removable threaded cover
The ring attaches with 8 screws (screws not included)
The diameter of the hole to insert the ring should be 16-1/4"
Outside diameter of the ring: 18"
Inside diameter of the ring: 15"
The removable cover screws into the ring which is attached to the tank
Outside diameter of removable cover 17-7/8"
Interior diameter of removable lid: 15-1/4"
Photo for illustrative purposes only. Refer to product description
