SKU : RS200PPEHD

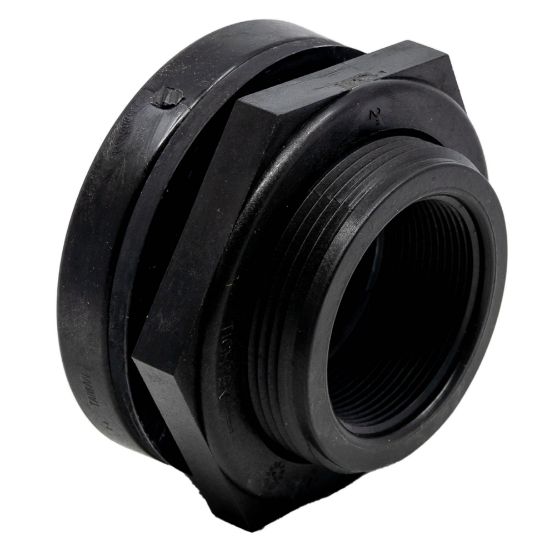

2" Fem NPT Thread Bulkhead Fitting. Polypropylene with EPDM Gasket

32,80 $
Sold : 1 Unit
Dimensions and characteristics below

Buy more and save !

QuantityPrice
3 - 532,14 $
6 - 1031,16 $
11 - 2430,50 $
25 - 9929,52 $
100 +26,90 $

CHARACTERISTICS

SKU : RS200PPEHD
  • Attribute name Attribute value
  • Diameter 2"
  • Seal EPDM
  • Connection Threaded Fem-Fem
  • Material Polypropylene
  • Use Entrance;Drain;etc.
  • Color Black

DESCRIPTION

* Used to add a connection to the tank.

  • Additional bulkhead fitting
  • Made from polypropylene
  • EPDM gasket
  • Female-Female NPT threaded
  • Hole saw size to drill the hole : 3-1/4″
  • Minimum fitting installation height (center – to floor): 4-1/2″
  • Dimension of flat space required to install the bulkhead fitting: 6″ x 6″
  • Minimum diameter of the tank to fix the fitting on the rounded wall: 48″
  • Suggested minimum space between 2 fittings (center to center): 16″
  • Torque foot lbs: 25
  • Product images are for information purposes only. Please check the product description.
  • It is recommended to check the chemical compatibility between the liquid to be contained and the materials of the fitting (polypropylene) and the gasket (EPDM) to ensure proper operation.
