SKU : RS075PPE

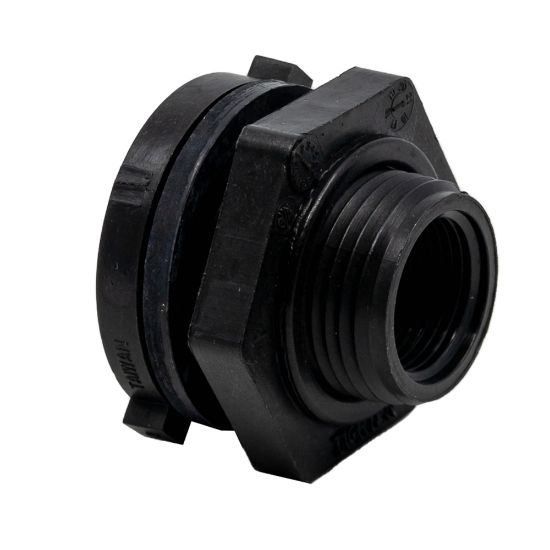

3/4" Fem NPT Thread Bulkhead Fitting. Polypropylene with EPDM Gasket

12,93 $
Sold : 1 Unit
Dimensions and characteristics below

Buy more and save !

QuantityPrice
3 - 512,67 $
6 - 1012,28 $
11 - 2412,02 $
25 - 9911,64 $
100 +10,99 $

CHARACTERISTICS

SKU : RS075PPE
  • Attribute name Attribute value
  • Diameter 3/4"
  • Seal EPDM
  • Connection Threaded Fem-Fem
  • Material Polypropylene
  • Use Entrance;Drain;etc.
  • Color Black

DESCRIPTION

* Used to add a connection to the tank.

  • Bulkhead head fitting
  • Made from polypropylene
  • EPDM gasket
  • Female-Female NPT threaded
  • Hole saw size to drill the hole : 1-7/16″
  • Minimum fitting installation height (center – to floor): 2-1/2″
  • Dimension of flat space required to install the bulkhead fitting: 2-3/4″ x 2-3/4″
  • Minimum diameter of the tank to fix the fitting on the rounded wall: 17″
  • Suggested minimum space between 2 fittings (center to center): 12″
  • Torque foot lbs: 15
  • Product images are for information purposes only. Please check the product description.
  • It is recommended to check the chemical compatibility between the liquid to be contained and the materials of the fitting (polypropylene) and the gasket (EPDM) to ensure proper operation.
