SKU : RS075PVCV

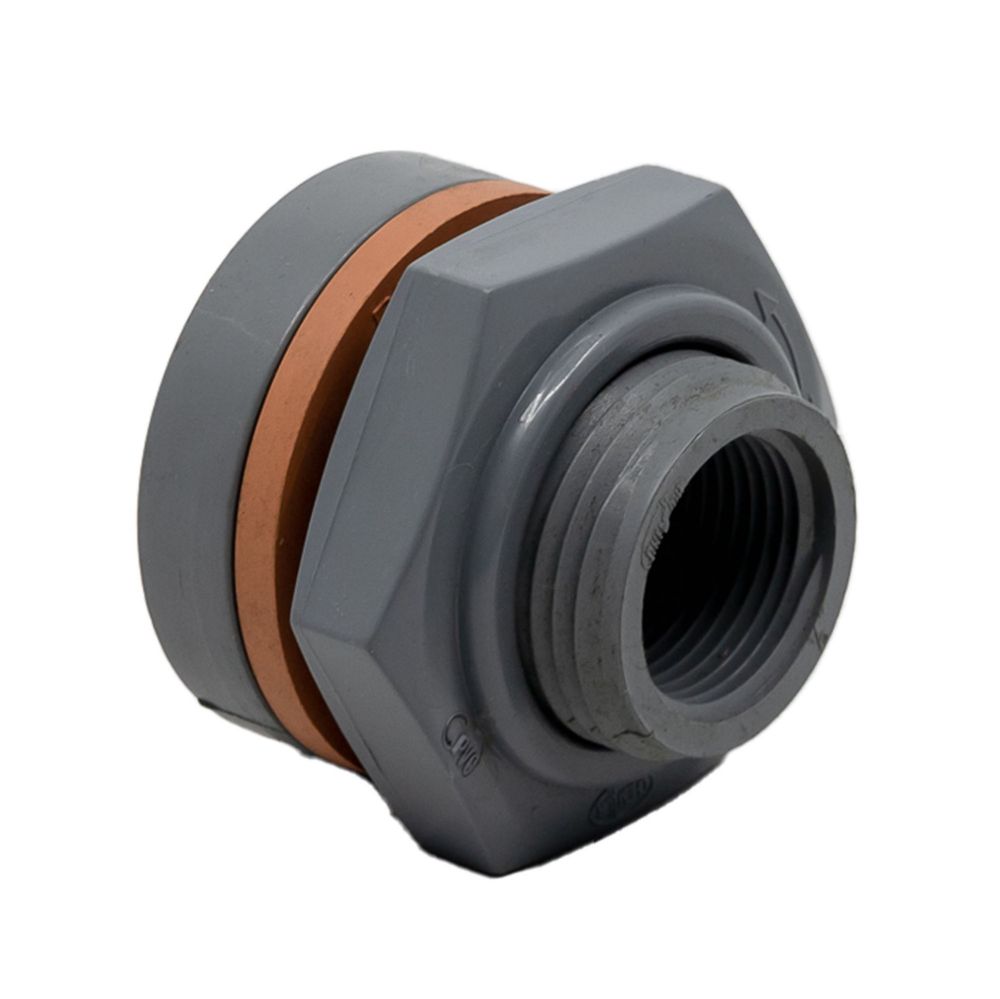

3/4" Fem NPT Thread Bulkhead Fitting. PVC with Viton Gasket

88,20 $
Sold : 1 Unit
View product details

Buy more and save !

QuantityPrice
3 - 586,44 $
6 - 983,79 $
10 +82,03 $

CHARACTERISTICS

SKU : RS075PVCV
  • Attribute name Attribute value
  • Diameter 3/4"
  • Seal Viton
  • Connection Threaded Fem-Fem
  • Material PVC
  • Use Entrance;Drain;etc.
  • Color Grey

DESCRIPTION

  • Additional bulkhead fitting
  • Made from PVC
  • Viton gasket
  • Female-Female NPT threaded
  • Hole saw size to drill the hole : 1-7/16″
  • Minimum fitting installation height (center – to floor): 2″
  • Dimension of flat space required to install the bulkhead fitting: 2-3/4″ x 2-3/4″
  • Minimum diameter of the tank to fix the fitting on the rounded wall: 17″
  • Suggested minimum space between 2 fittings (center to center): 1″
  • Torque (foot-lb) : no specific torque/tightening requirements; Hand tight plus a quarter to a half turn with a non-marring strap wrench
