1600 US Gallons Rectangular Low Profile Tank, 1.5 sg, White

Print screen

SKU : LP43013

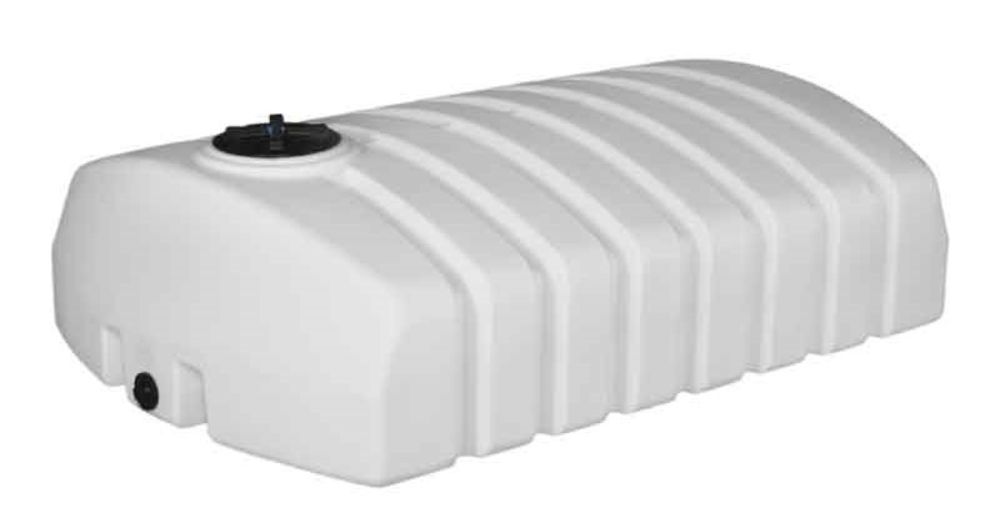

1600 US Gallons Rectangular Low Profile Tank, 1.5 sg, White

5 658,82 $

Sold : 1 Unit

Qty:

Dimensions and characteristics below

Buy more and save !

Quantity	Price
3 - 4	5 489,06 $
5 +	5 375,88 $

CHARACTERISTICS

SKU : LP43013

Attribute name Attribute value
Lid 16" Vented
Capacity (Litre) 6000
Capacity (Gal US) 1600
Dim. (W x L x H) 84" x 126" x 42"
Outlet 2"
Weight (lbs) 465
Relative Density 1.5
Color White
Series LP Series

Product tags

eau (54)
,
potable (54)
,
pour (54)
,
reservoir (54)
,
de (50)
,
1500 gallons (21)
,
6000 litres (19)
,
1600 gallons (7)
,
6000 liters (19)
,
43013 (1)

DESCRIPTION

Material: high-density polyethylene (HDPE) with UV inhibitors
16" vented screw-lid included
Outlet included: 1 » polypropylene, threaded FNPT
Can contain liquids with specific gravity up to 1.5 (12.5 lb / US Gallon) at 20°C
Molded in one piece
Freestanding flat bottom tank
Translucent white
Built-in graduated US gallon and liter gallon indicators on two sides
Resin meets the FDA regulations for potable water storage
Maximum storage temperature of 120 °F / 49 °C
Above ground use only
Can’t be pressurized
Product images are for information purposes only. Please check the product description and technical drawing

TECHNICAL DRAWINGS

Product Files

Dessins techniques / Technical drawings

Dessin Technique LP43013 / Technical Drawing LP43011

RESSOURCES

Did you know?

GOOD TO KNOW...

We can install additional connections and accessories on our tanks.
For a specific installation that meets your needs such as bulkhead fittings, drains, vents, ball valves, flanges and HDPE welded couplings, please contact one of our advisors at 450-471-2772 Ext. 1.

These low-profile rectangular tanks from the LP series are mostly used for liquid transportation or storage. They are perfect to fit inside a pickup truck box without exceeding. They are fabricated from HDPE with UV inhibitors and can be used for any indoor or outdoor applications. The resin used to manufacture these tanks meets the FDA regulations for safe storage of potable water. They are designed to contain liquids up to 1.5 specific gravity. Tank walls are translucent for level viewing and are equipped with a molded-in US gallon indicators.

At all times, the tanks must be placed on a flat surface as smooth as possible to avoid pressure points that can damage the base. They come standard with a drain and a non-vented hinged lid.

The LP series low profile rectangular tanks are great for: storing safe potable water, sap water or rainwater, harvesting, chemical storage, liquid management, liquid solution storage, farm irrigation and any other food, industrial or commercial applications.

* All dimensions, specifications and capacities may vary slightly and are subject to change without notice.
