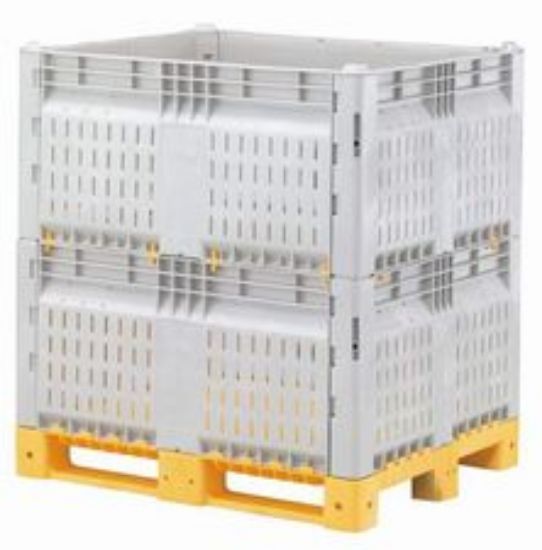

Foldable Pallet Boxes, Vented Walls, 40" x 48" x 50", Gray

Print screen

SKU : KXV404850

Foldable Pallet Boxes, Vented Walls, 40" x 48" x 50", Gray

1 266,90 $

Sold : 3 Units and more

This product has a minimum quantity of 3

Qty:

Dimensions and characteristics below

Buy more and save !

Quantity	Price
6 - 8	1 203,56 $
9 - 12	1 165,55 $
13 - 19	1 114,87 $
20 - 25	1 064,20 $
26 +	975,51 $

CHARACTERISTICS

SKU : KXV404850

Attribute name Attribute value
Walls Openwork
Capacity (Litre) 1230
Capacity (Gal US) 280
Charge Capacity (lbs) 1320
Dim. (W x L x H) 40" x 48" x 50"
Int. Dimensions (W x L x H) 36" x 44" x 44"
Weight (lbs) 123
Color Grey
Series KXV Series

DESCRIPTION

Vented walls for faster cooling and processing times
Meet USDA/HACCP standards for food product handling
Material: high-density polyethylene, injection molded
Includes 1 pallet and 8 dissembled walls
Two disassembled containers fit into a single KX unit with the pallet bases nested on top
Compared to straight-wall containers; up to 40% greater space savings
A unique worker can assemble the container easily
Replaceable parts when broken
Stackable up to 3 high, with or without cover
Smooth interior
The bottom bin supports up to 3 900 lb
Can be pressure-washed
Four-way accessibility with forklift and two-way with a hand truck
Withstands temperature between -28 °C to 49 °C
For indoor or outdoor applications, UV resistant
Unaltered by chemicals or solvents
Combines efficiency and durability
Product images are for information purposes only, please check the product description.

TECHNICAL DRAWINGS

RESSOURCES

Product Files

Fiches complètes / Complete files

KX and KXV Series - Complete file

Guide d'achat / Buyer's guide

Did you know?

GOOD TO KNOW...

The shipping and storage KX bin is a “knock-down” container system. The KX design allows all walls to be completely detached from the pallet. The system is comprised of a pallet base and four independent sides, fitted together to create a strong and durable container while offering space savings when not in use.

Four disassembled containers fit into one KX bin, with the pallet bases nested on top. Tree full KX bins can fit in one truck spot compares to five disassembled KX bins. It means savings up to 40% area space. Removable walls provide easy access for loading and unloading. All panels are interchangeable and can be replaced one at a time if damaged. You cut replacement and inventory costs and never risk downtime from a lack of container inventory.

These pallet boxes are frequently used for the handling, storage and transportation of items of all kinds. To accommodate different storage needs, three versions are offered in this category: with single, double or triple height walls. The clips, retaining the upper wall to the lower one, allow creating easily an access-door. An upper wall can also be removed completely to create a fully open door.

* Performance characteristics are based on uniform static loads and may be affected by distribution of load, handling methods, number and type of access doors and temperatures beyond the range of 0 to 48 degrees Celsius. All dimensions, specifications and capacities may vary slightly and are subject to change without notice.
