Vertical Closed Top Tank, White 1.9 sg - 120 US Gallons / 450 Liters

720,92 $

Sold : 1 Unit

Qty:

Buy more and save !

Quantity	Price
2	706,50 $
3 - 7	684,87 $
8 +	670,46 $

CHARACTERISTICS

SKU : VFA100CH19

Attribute name Attribute value
Capacity (Litre) 450
Capacity (Gal US) 120
Dimensions (Diam. x H) 30" x 42"
Outlet Optional
Lid 12"
Weight (lbs) 48
Relative Density 1.9
Color White
Series VFA Series

Product tags

DESCRIPTION

The VFA series tanks are primarily used for storing chemicals.

- This tank has no drain or vent
- These accessories are sold separately

Material: High density polyethylene (HDPE) with UV inhibitors
Molded in one piece
Freestanding with a flat bottom
Moled-in level indicator (imp. Gal)
Screw lid: 12” without vent (# LID12N)
Specific gravity: 1.9 (15.8 lb / US Gallon) at 20 °C
Translucent white
Resin meets the FDA regulations
Resin complies with the requirements of NSF/ANSI Standard 61 for potable water
Maximum storage temperature of 120 °F / 49 °C
Above ground use only
Can’t be pressurized
Product images are for information purposes only. Please check the product description and technical drawing

For specific applications, other options are also available on the VFA series tanks, like Cross-Link Polyethylene (XPEHD) material, specific gravity up to 2.2 or opaque colors (blue, yellow, white or black).

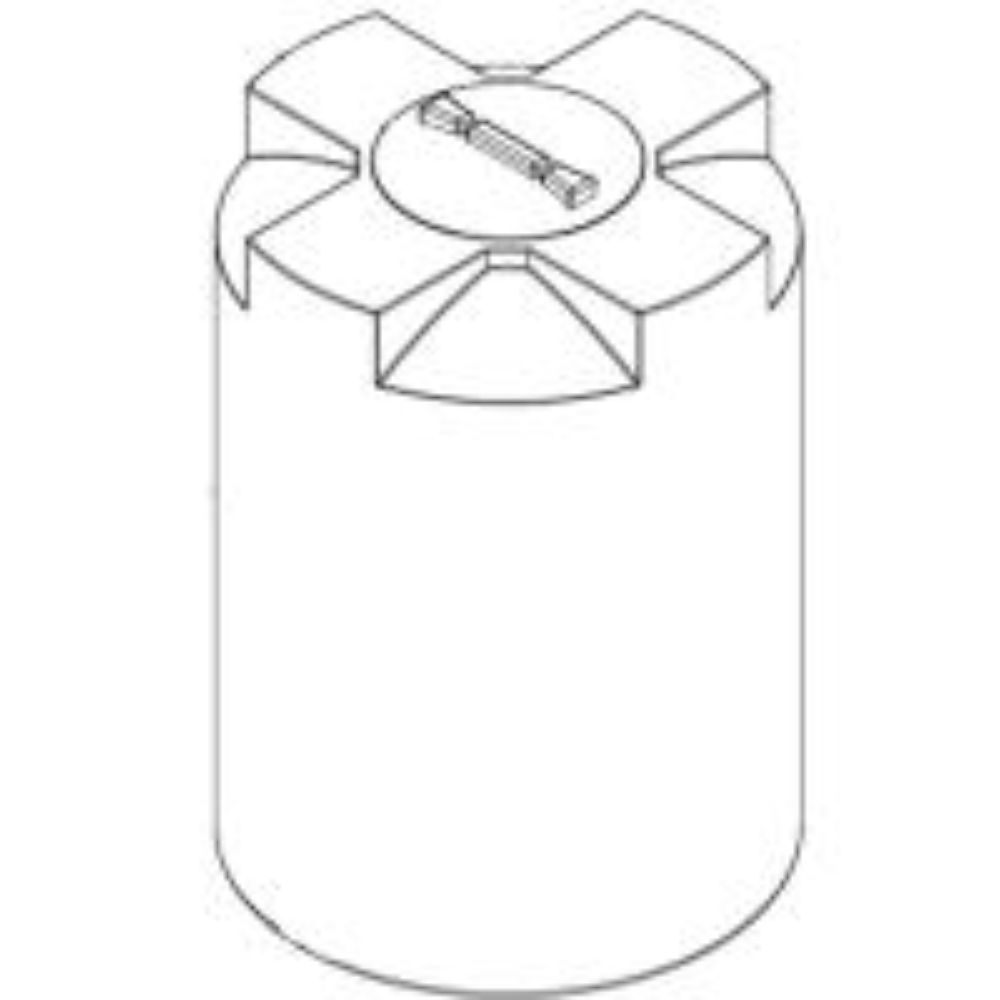

TECHNICAL DRAWINGS

Product Files

Dessins techniques / Technical drawings

Dessin Technique Réservoir VFA100CH15 et VFA100CH19

RESSOURCES

Product Files

Guide d'achat / Buyer's guide

Buyer's guide - Tanks

Guide d'installation et d'utilisation / Installation and user guide

Guide de la densité relative / Relative density guide

Relative density guide

Guide de résistance aux produits chimiques / Chemical resistance guide

Charte de résistance aux produits chimiques / Chemical resistance chart

Did you know?

GOOD TO KNOW...

We install additional accessories and fittings on our tanks.
For any assembly adapted to your needs such as the installation of inlets, outlets, vents, overflows, welded HDPE flanges and fittings, valves, etc., please contact one of our sales representative at 450-471-2772 Ext. 1.

The verticals closed top tanks of the VFA series are mainly used to store chemicals of all kinds. All the accessories that compose them are sold separately. Indeed, these tanks do not have any drain, it must be selected according to the liquid to contain and the equipment to connect, such as the type of drain, its material, its seal and its diameter.

Depending on the tank model, the cover offered is either screwed or with a locking strap, but does not have any vent, so it must be added to be able to use the tank with the lid closed. The purpose of having the vent apart is mainly for the recovery of harmful chemicals emissions, in fact, the vent can be connected to piping, in order to eliminate them. The VFA tanks do not feature any moulded graduation, but a graduated sticker in litres and imperial gallons is available and can be installed if needed. The walls are translucent showing the level.

The only tank model to have a molded-in level graduatione is the VFA100ch19, all the other models do not have one. A sticker graduated in liters and imperial gallons is offered and if necessary, can be installe d by the manufacturer. The walls are translucent allowing the level to be seen.

At all times, the tanks should be placed on a flat surface and as smooth as possible to avoid pressure points that could damage the base. The resin used for their production is high-density polyethylene (HDPE), an FDA-compliant material, and is treated with UV protection. They can be installed indoors or outdoors.

These tanks are certified NSF / ANSI Standard 61 to contain potable water. Depending on the model, the tanks are designed to contain liquids up to 1.9 specific gravity. For specific applications, a range of tanks up to 2.2 specific gravity is available upon request, as a polyethylene cross-link (XPEHD) molding or an opaque color (blue, yellow, white or black).

The vertical tanks of the VFA series are mainly designed for: the storage of chemicals, but if the dimensions are suitable for your needs, they can also serve as a reserve of drinking water, for rainwater recovery, for the storage of maple water or for the management of liquids of all kinds. In fact, they can be used for all food, industrial or commercial applications.

* All dimensions, specifications and capacities may vary slightly and are subject to change without notice.
