SKU : FB42347

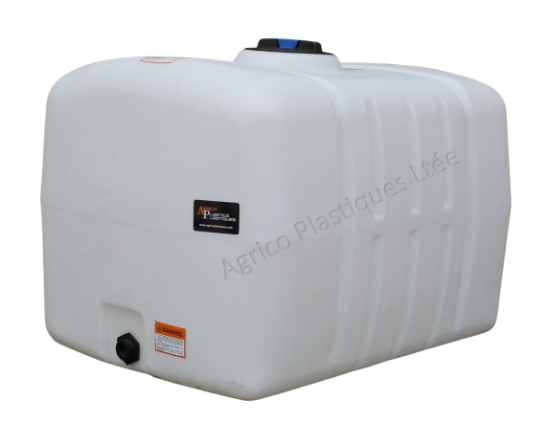

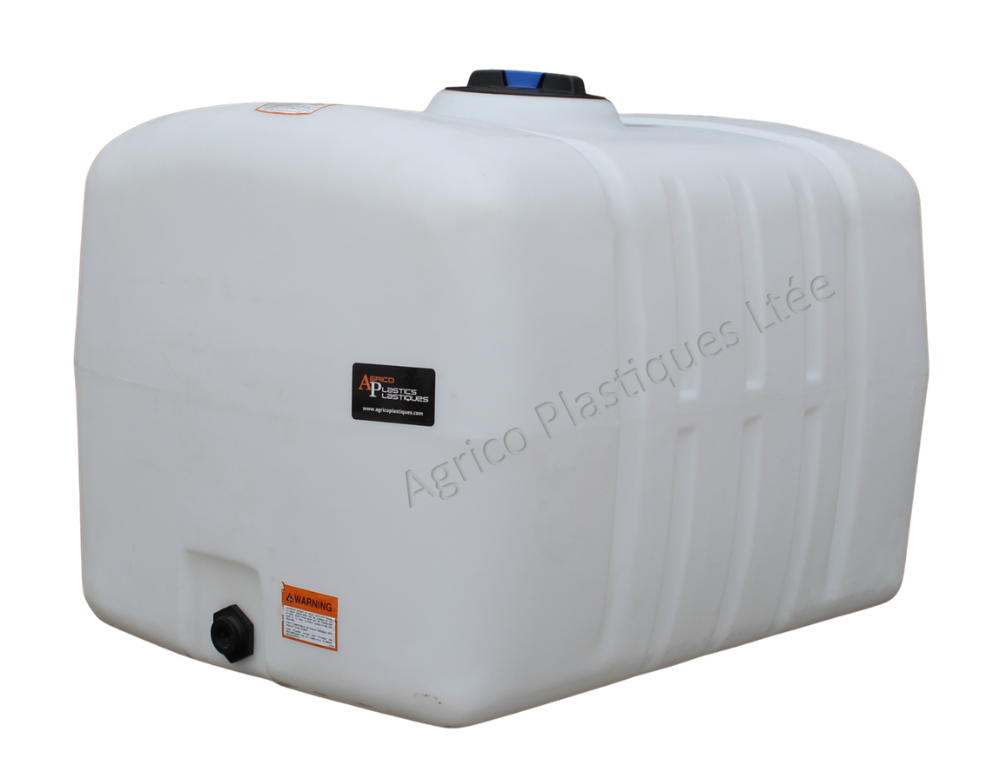

Flat Bottom Rectangular Tank, White 1.5 sg - 200 US Gallons / 757 Litres

916,34 $

Sold : 1 Unit

Qty:

Dimensions and characteristics below

Buy more and save !

Quantity	Price
3 - 4	888,85 $
5 +	870,52 $

CHARACTERISTICS

SKU : FB42347

Attribute name Attribute value
Capacity (Litre) 757
Capacity (Gal US) 200
Dim. (W x L x H) 36" x 48" x 36.5"
Outlet 1"
Lid 8" Vented
Weight (lbs) 83
Relative Density 1.5
Color White
Series FB Series

Product tags

transport tank (46)
,
200 gallons (11)
,
700 litres (7)
,
eau (54)
,
potable (54)
,
pour (54)
,
reservoir (54)
,
de (50)
,
transport (48)
,
700 liters (7)
,
800 litres (7)
,
800 liters (7)
,
42347 (1)
,
fb42 (4)

DESCRIPTION

PLASTIC TANK:

Material: high density polyethylene (HDPE) with UV inhibitors
Molded in one piece
Freestanding with a flat bottom
Screw lid: 8” with vent (# COUV63480)
Outlet included: 1 » polypropylene, threaded FNPT
Specific gravity: 1.5 (12.5 lb / US Gallon) at 20 °C
Translucent white
Built-in graduated US gallon indicator
Resin meets the FDA regulations for potable water storage
Maximum storage temperature of 120 °F / 49 °C
Above ground use only
Can’t be pressurized
Product images are for information purposes only. Please check the product description and technical drawing

STEEL BANDS:

Steel bands are optional – sold separately (kit of 2 steel bands #AR63554)
Preserve the integrity and shape of the tank, prevent it from deforming under the pressure of the liquid
Specifically designed to secure the tank during transport without creating pressure on it
To be fasten with bolts (bolts not included)
Maximize space in the truck; by being close to the tank, they clear the space around
Offer latitude on the orientation of the tank; do not depend on the anchors located in fixed locations on each side of the truck box or platform
Material: galvanized steel

TECHNICAL DRAWINGS

Product Files

Dessins techniques / Technical drawings

RESSOURCES

Product Files

Guide d'achat / Buyer's guide

Buyer's guide - Tanks

Guide d'installation et d'utilisation / Installation and user guide

Guide de la densité relative / Relative density guide

Relative density guide

Guide de résistance aux produits chimiques / Chemical resistance guide

Charte de résistance aux produits chimiques / Chemical resistance chart

Did you know?

GOOD TO KNOW...

We install additional accessories and fittings on our tanks.
For any assembly adapted to your needs such as the installation of inlets, outlets, vents, overflows, welded HDPE flanges and fittings, valves, etc., please contact one of our sales representative at 450-471-2772 Ext. 1.

The rectangular tanks from the FB series are mostly used for liquid transportation and storage.
These plastic tanks are manufactured from HDPE with UV inhibitors and are made for indoor or outdoor applications.
The resin used to manufacture these tanks meets FDA specifications for safe storage of potable water. They are designed to contain liquids up to 1.5 specific gravity. Tank walls are translucent for level viewing and are equipped with US gallon indicators.

At all times, the tanks must be placed on a flat surface as smooth as possible to avoid pressure points that can damage the base.
They come standard with a drain installed and a vented screw lid.

Multi-purpose FB rectangular plastic tanks are great for: storing safe drinking water, sap or rainwater, harvesting, chemical storage, liquid management, liquid solution storage, farm irrigation and any other food, industrial or commercial applications.

* All dimensions, specifications and capacities may vary slightly and are subject to change without notice.
