SKU : CB025036

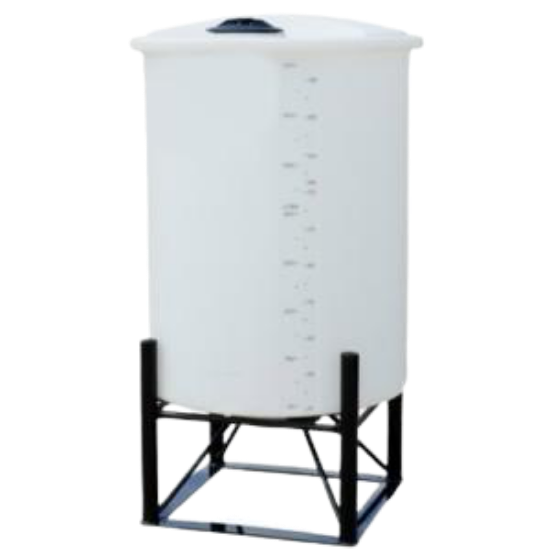

250 US Gallons Close Top Cone Bottom Tank, 2.0 sg, White. Steel Stand Included

Latest stock update :
28 Mar. 2024 18:16
In stock : 0 available
Next arrival : 0
Lead time if out of stock : 35 à 40 semaines
Share
Sold : 1 Unit
2 010,89 $

Buy more and save!

QuantityPrice
31 970,67 $
4 - 71 910,35 $
8 +1 870,13 $

** Tank made to order (Non-returnable and non-refundable item)


PLASTIC TANK :

  • Material: medium-density polyethylene (MDPE) with UV inhibitors
  • Molded in one piece
  • 15° conical bottom
  • Enables quick and complete drainage
  • Flat top tank
  • Tanks top feature additional flats for fitting installation or mount
  • Screw lid: 8″ with vent (# COUV10525)
  • Outlet included: 2″ Polypropylene, threaded FNPT
  • Specific gravity: 1.7 (14.16 lb / US Gallon) at 20 °C
  • Translucent white
  • Built-in level indicator in US gallons and litres
  • Resin meets the FDA regulations for food contact
  • Maximum storage temperature of 120 °F / 49 °C
  • Above ground use only
  • Can’t be pressurized
  • Product images are for information purposes only. Please check the product description and technical drawing.


PAINTED STEEL STAND :

  • Included with the tank
  • Material: black painted steel
  • Above ground use only
  • Product images are for information purposes only. Please check the product description and technical drawing.
SKU : CB025036
  • Attribute name Attribute value
  • Dim. On Support (Diam. x H) 40" x 80"
  • Color White
  • Capacity (Litre) 946
  • Capacity (Gal US) 250
  • Outlet 2"
  • Series CB Series
  • Lid 8"
  • Cone Angle 15°
  • Cone Distance on the ground 14"
  • Weight with stand (lbs) 160
  • Dimensions of the tank (Diam. x H) 36" x 67"
  • Roof type Flat
  • Relative Density 1.7
Product Files
Dessins techniques / Technical drawings
Product Files
Guide d'achat / Buyer's guide
Guide d'installation et d'utilisation / Installation and user guide
Guide de la densité relative / Relative density guide
Guide de résistance aux produits chimiques / Chemical resistance guide


GOOD TO KNOW...

We install additional accessories and fittings on our tanks.
For any assembly adapted to your needs such as the installation of inlets, outlets, vents, overflows, welded HDPE flanges and fittings, valves, etc., please contact one of our sales representative at 450-471-2772 Ext. 1.

The closed top cone bottom tanks of the CB series are designed for stationary use only. All tanks in this series are mounted on a black-painted steel stand that is included when purchasing the tank. At all times, they must be placed on their steel support specifically designed to avoid pressure points that could damage the walls of the tank. These conical tanks are made of medium or high-density polyethylene treated with UV protection for indoor or outdoor use. Note that if the tank is stored outside, over time, the metal stand may rust. The resin used to manufacture the plastic tank complies with FDA standards for potable water.

Depending on the model, the tanks are designed to contain liquids up to 2.0 specific gravity. The inclination of the base varies between 15° and 45°, so the cone bottom tanks are suitable for holding different types of liquids or mixtures ranging from viscous to thicker. The walls are translucent white to show the level of the contents and have a molded-in graduation in US gallons and liters. All tanks are equipped with a drain and a vented screwed lid.

The cone bottom plastic tanks of the CB series have multiple uses; for the storage of water, chemicals, dense or viscous liquids, for the mixing of powder with a liquid, for the preparation of blends of all kinds or for a settling process. They are very interesting when a complete cleaning and drainage is required between each use.

* All dimensions, specifications and capacities may vary slightly and are subject to change without notice.
