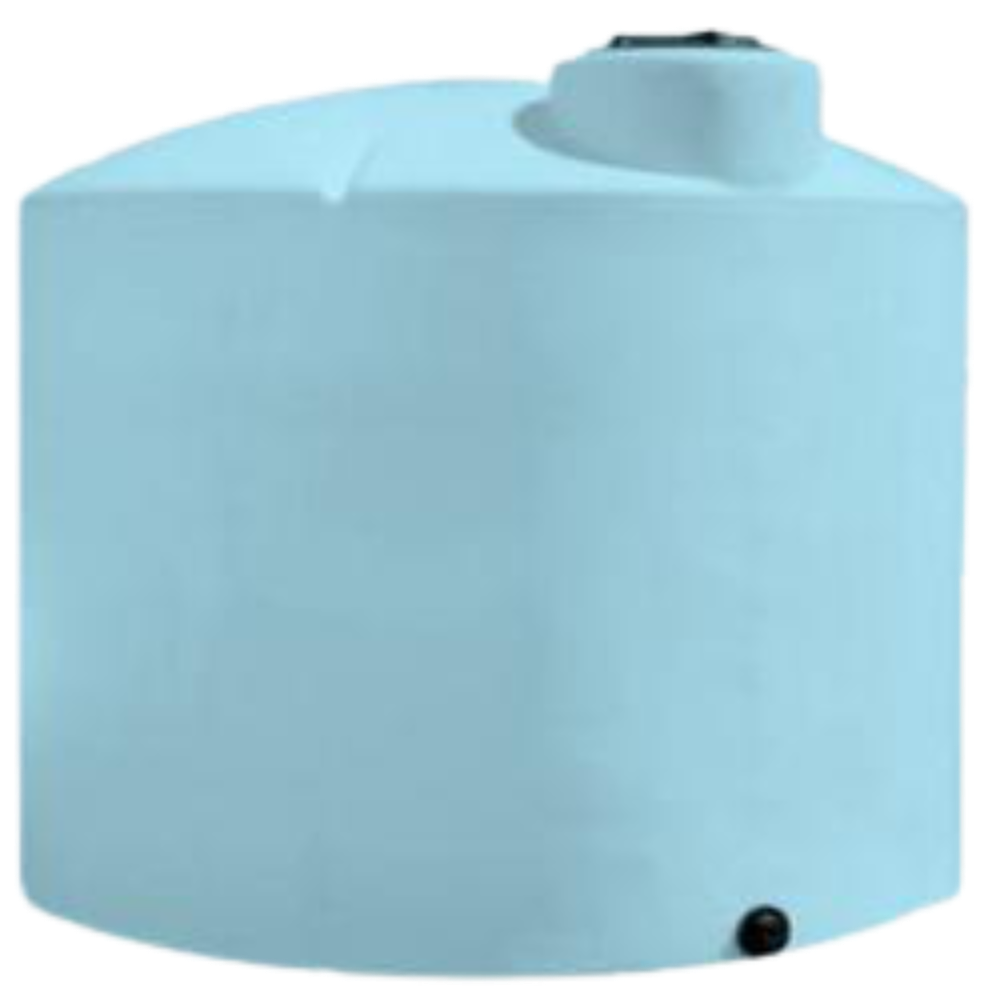

2500 US Gallons Vertical Closed Top Tank, 1.9 sg, Blue

4 988,60 $

Sold : 1 Unit

Qty:

Buy more and save !

Quantity	Price
3 - 4	4 838,94 $
5 +	4 739,17 $

This item has a shipping limitation ( Read here )

CHARACTERISTICS

SKU : VFN40052

Attribute name Attribute value
Dimensions (Diam. x H) 95" x 91"
Capacity (Litre) 9463
Lid 16" Vented
Capacity (Gal US) 2500
Outlet 2"
Relative Density 1.9
Weight (lbs) 425
Color Blue
Series VFN Series

Product tags

DESCRIPTION

DELIVERY:

The tank is too big to be palletized, so it is shipped lying on its side, unprotected, in a 53 foot enclosed trailer.
It must be pushed on its white wall to get it in and out of the truck.
For a "Flat bed" delivery (open trailer), you must ask for a freight quote.
Delivery is more expensive, but it is direct. An additional delay of 24 to 48 hours is to be expected.
A loading dock or a forklift or tractor with 8-foot forks is required to unload.

TANK:

Material: high density polyethylene (HDPE) with UV inhibitors
Molded in one piece
Freestanding tank with a flat bottom
Dome top tank
Screw lid: 16″ with vent (# COUV63485)
Outlet included: 2″ polypropylene, threaded FNPT with 2″ siphon
Specific gravity: 1.9 (15.8 lb / US Gallon) at 20 °C
Walls are translucent blue
Molded-in graduation in US gallons
Resin meets the FDA regulations for potable water storage
Maximum storage temperature of 120 °F / 49 °C
Above ground use only
Can’t be pressurized
Product images are for information purposes only. Please check the product description and technical drawing

TECHNICAL DRAWINGS

Product Files

Dessins techniques / Technical drawings

Dessin Technique Réservoir VFN40052

RESSOURCES

Product Files

Guide d'achat / Buyer's guide

Buyer's guide - Tanks

Guide d'installation et d'utilisation / Installation and user guide

Guide de la densité relative / Relative density guide

Relative density guide

Guide de résistance aux produits chimiques / Chemical resistance guide

Charte de résistance aux produits chimiques / Chemical resistance chart

Did you know?

We can install additional connections and accessories on our tanks. For a specific installation that meets your needs such as bulkhead fittings, drains, vents, ball valves, flanges and HDPE welded couplings, please contact one of our advisors at 450-471-2772 Ext. 1.

The vertical closed top tanks of the VFN series are very popular because they are versatile and adaptable to many uses and they are the most economical tanks of all models. They are designed for storage applications only, they are not suitable for transport uses. These plastic tanks are manufactured from HDPE with UV inhibitors and can be stored indoor or outdoor. The resin used to manufacture these tanks meets the FDA standards for safe storage of potable water.

At all times, the tanks must be placed on a flat surface as smooth as possible to avoid pressure points that can damage the base. Depending on the model, the tanks are designed to contain liquids up to 1.9 specific gravity. The walls are translucent white or blue for levels viewing and include a molded-in graduation in US gallons. They are equipped with an FNPT drain and a vented screw lid. On models that have a domed top, the cover is shifted close to the wall to provide a better access.

Multipurpose vertical plastic tanks of the VFN series are great for: storing safe drinking water, sap or rainwater, harvesting, chemical storage, liquid management, liquid solution storage, farm irrigation and any other food, industrial or commercial applications.

* All dimensions, specifications and capacities may vary slightly and are subject to change without notice.
