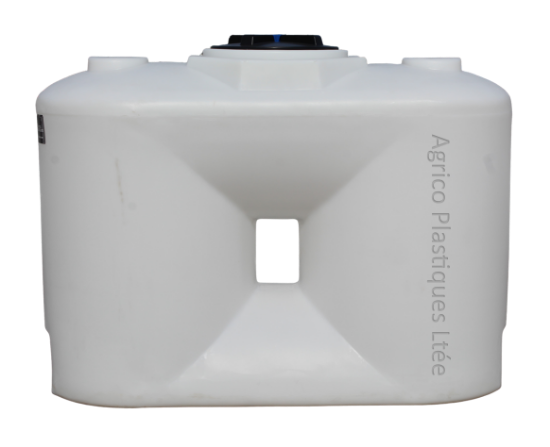

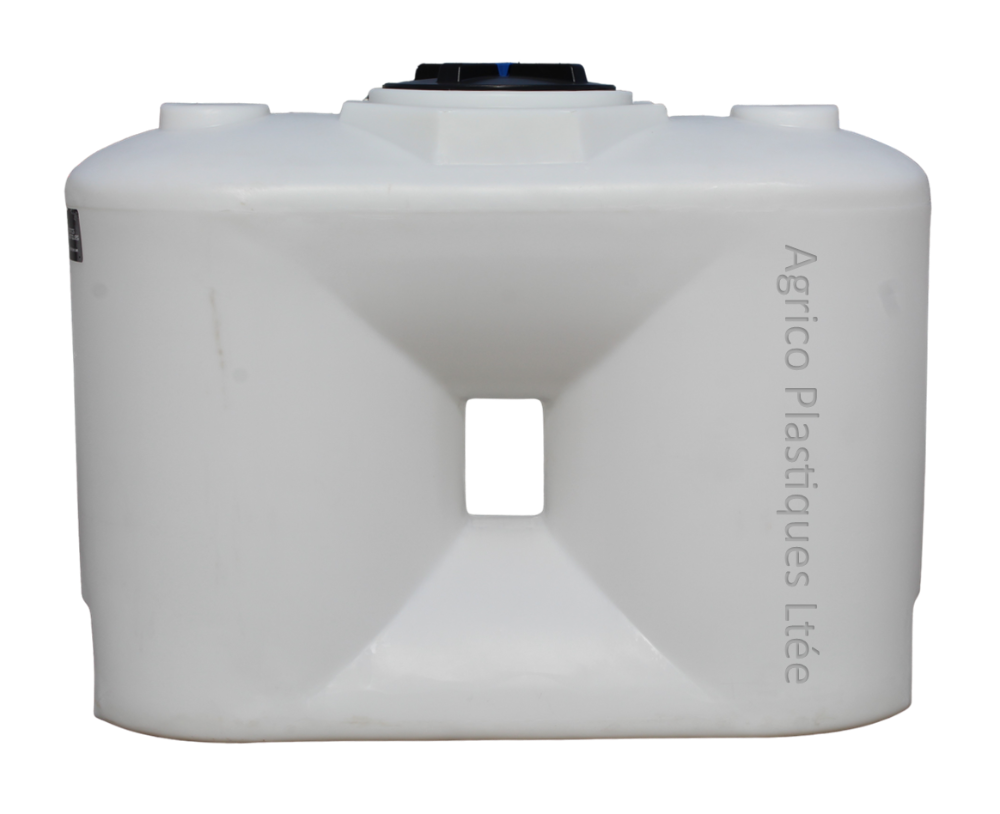

300 US Gallon Rectangular Upright Tank, 1.5 sg, White

1 577,92 $

Sold : 1 Unit

Qty:

Buy more and save !

Quantity	Price
2 - 4	1 530,58 $
5 +	1 499,02 $

CHARACTERISTICS

SKU : UP44330

Attribute name Attribute value
Capacity (Litre) 1136
Lid 16" Vented
Capacity (Gal US) 300
Dim. (W x L x H) 29" x 66" x 50"
Outlet 1.25"
Relative Density 1.5
Weight (lbs) 160
Color White
Series UP Series

Product tags

300 gallons (14)
,
eau (54)
,
potable (54)
,
pour (54)
,
reservoir (54)
,
1200 litres (9)
,
1100 litres (8)
,
1100 liters (9)
,
1200 liters (9)
,
up44330 (1)
,
door way (3)
,
44330 (1)
,
up44 (1)

DESCRIPTION

Material: high-density polyethylene (HDPE) with UV inhibitors
Molded in one piece
Freestanding with a flat bottom
No level graduation
Screw lid: 16″ with vent (# COUV63485)
Outlet included: 1-1/4" polypropylene, threaded FNPT
Specific gravity: 1.5 (12.5 lb / US Gallon) at 20 °C
Translucent white
Resin meets the FDA regulations for potable water storage
Maximum temperature of use of 120 °F / 49 °C
Above ground use only
Can’t be pressurized
* Product images are for information purposes only. Please check the product description and technical drawing

TECHNICAL DRAWINGS

Product Files

Dessins techniques / Technical drawings

Dessin Technique Réservoir UP44330

RESSOURCES

Product Files

Guide d'achat / Buyer's guide

Buyer's guide - Tanks

Guide d'installation et d'utilisation / Installation and user guide

Guide de la densité relative / Relative density guide

Relative density guide

Guide de résistance aux produits chimiques / Chemical resistance guide

Charte de résistance aux produits chimiques / Chemical resistance chart

Did you know?

We can install additional connections and accessories on our tanks. For a specific installation that meets your needs such as bulkhead fittings, drains, vents, ball valves, flanges and HDPE welded couplings, please contact one of our advisors at 450-471-2772 Ext. 1.

Rectangular vertical tanks from the UP series have been designed with residential and commercial applications in mind. They are narrow, so perfect for tight spaces or to fit through a conventional doorway. The design of these freestanding self-supporting tanks eliminates the need for a steel support frame when used for a storage application. They will need to be well tight when used on transport. They are frequently installed in the back of a truck because they allow space for other equipment, such as a pressure washer machine or a pump.

These plastic tanks are manufactured from HDPE with UV inhibitors and are made for indoor or outdoor applications. They meet the FDA regulations for potable water and are designed to contain liquids up to 1.5 specific gravity. Tank walls are translucent for levels viewing but they are not equipped with a level indicator.

At all times, the vertical tanks must be placed on a flat surface as smooth as possible to avoid pressure points that can damage the base. They are equipped with a drain and a vented screw lid.

Vertical rectangular tanks from the UP series are great for: storing safe drinking water, sap water or rainwater, harvesting, chemical storage, liquid management, liquid solution storage, farm irrigation and any other food, residential, industrial or commercial applications.

* All dimensions, specifications and capacities may vary slightly and are subject to change without notice.
