Print screen
Picture of 60 US Gallons Close Top Cone Bottom Tank, 1.5 sg, White. Steel Stand Included
SKU : CBN42066

60 US Gallons Close Top Cone Bottom Tank, 1.5 sg, White. Steel Stand Included

Latest stock update :
23 Apr. 2024 22:36
CURRENTLY : 5 IN STOCK
Next availability : 0
If no availability : 6 to 8 weeks

Free pick up

Shipping costs calculated at checkout

Share
Sold : 1 Unit
701,61 $

Buy more AND SAVE !

QuantityPrice
3 - 4680,56 $
5 +666,53 $

Steel stand included (# CBN63397ST).

  • Material: high-density polyethylene (HDPE) with UV inhibitors
  • Molded in one piece
  • 57° conical bottom for quick and complete draining
  • Enables quick and complete drainage
  • Flat top tank
  • Screw lid: 16″ with vent (# COUV63485)
  • Outlet included: 2″ polypropylene, threaded FNPT
  • Specific gravity: 1.5 (12.5 lb / US Gallon) at 20 °C
  • Translucent white
  • Built-in US gallon Indicators
  • Resin meets the FDA regulations for food contact
  • Maximum storage temperature of 120 °F / 49 °C
  • Above ground use only
  • Can’t be pressurized
  • Product images are for information purposes only. Please check the product description and technical drawing.
SKU : CBN42066
  • Attribute name Attribute value
  • Capacity (Litre) 227
  • Dim. On Support (Diam. x H) 24" x 56"
  • Capacity (Gal US) 60
  • Lid 16" Vented
  • Outlet 2"
  • Relative Density 1.5
  • Color White
  • Cone Angle 57°
  • Series CBN Series
  • Cone Distance on the ground 13.5"
  • Weight with stand (lbs) 42
  • Dimensions of the tank (Diam. x H) 24" x 42"
  • Roof type Flat
Product tags
Product Files
Dessins techniques / Technical drawings
Product Files
Guide d'achat / Buyer's guide
Guide d'installation et d'utilisation / Installation and user guide
Guide de la densité relative / Relative density guide
Guide de résistance aux produits chimiques / Chemical resistance guide


GOOD TO KNOW...

We install additional accessories and fittings on our tanks.
For any assembly adapted to your needs such as the installation of inlets, outlets, vents, overflows, welded HDPE flanges and fittings, valves, etc., please contact one of our sales representative at 450-471-2772 Ext. 1.

The closed top cone bottom tanks of the CBN series are designed for stationary use only.

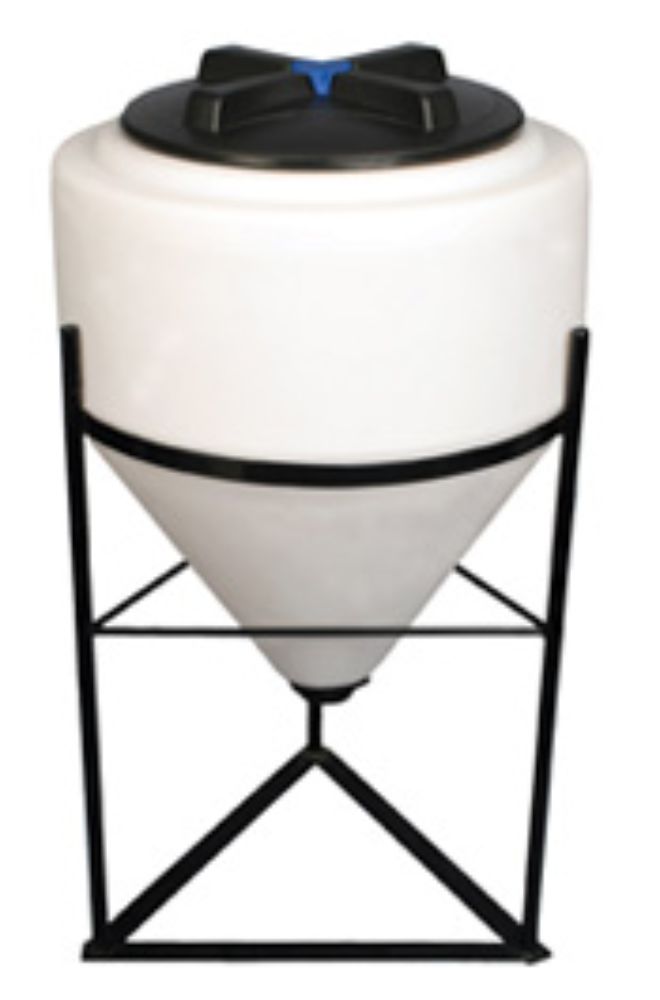

The 15, 30 and 60 US gallon tanks are the only 3 models to have a metal stand that is sold separately, but the stand is required to obtain the manufacturer warranty on the tank. All other models in this series are mounted on a plastic (HDPE) stand that is included with the purchase of the tank. All tanks must be installed on their original stand to obtain the manufacturer’s warranty. Depending on the tank model, the inclination of the base varies between 30° and 57°, so that the cone bottom tanks are suitable for holding different types of liquids or mixtures ranging from viscous to thicker.

These cone bottom plastic tanks are made of UV treated high-density polyethylene for indoor or outdoor use.The resin complies with FDA standards for food contact. Depending on the model, the tanks are designed to contain liquids up to 1.9 specific gravity. The walls are translucent to show the level of the contents and have a graduation molded-in US gallons. All tanks are equipped with a drain, installed in the cone, and with a vented screwed lid. At all times, the tanks must be placed on their original stand, which is specifically designed to prevent pressure points that could damage the walls of the tank.

The cone bottom plastic tanks of the CBN series have multiple uses; for the storage of chemicals, dense or viscous liquids, for the mixing of powder with a liquid, for the preparation of blends of all kinds or for a settling process. They are very interesting when a complete cleaning and drainage is required between each use.

* All dimensions, specifications and capacities may vary slightly and are subject to change without notice.
