1050 US Gallons Close Top Cone Bottom Tank, 1.5 sg, White. Polyethylene Stand Included

4 578,72 $

Sold : 1 Unit

Qty:

Buy more and save !

Quantity	Price
3 - 4	4 441,36 $
5 +	4 349,78 $

This item has a shipping limitation ( Read here )

CHARACTERISTICS

SKU : CBN40359

Attribute name Attribute value
Dim. On Support (Diam. x H) 73" x 86"
Capacity (Litre) 3975
Lid 16" Vented
Capacity (Gal US) 1050
Outlet 2"
Relative Density 1.5
Color White
Cone Angle 20°
Cone Distance on the ground 11"
Series CBN Series
Weight with stand (lbs) 360
Dimensions of the tank (Diam. x H) 72" x 72.5"
Roof type In dome

Product tags

4000 litres (15)
,
1000 gallons (15)
,
4000 liters (15)
,
cbn40359 (1)

DESCRIPTION

PLASTIC TANK:

Material: high-density polyethylene (HDPE) with UV inhibitors
Molded in one piece
20° conical bottom
Enables quick and complete drainage
Dome top tank
Screw lid: 16″ with vent (# COUV63585 )
Outlet included: 2″ polypropylene, threaded FNPT
Specific gravity: 1.5 (12.5 lb / US Gallon) at 20 °C
Translucent white
Built-in US gallon Indicators
Resin meets the FDA regulations for food contact
Maximum storage temperature of 120 °F / 49 °C
Above ground use only
Can’t be pressurized
Product images are for information purposes only. Please check the product description and technical drawing.

PLASTIC STAND :

Included with the tank
Material: black high-density polyethylene with UV inhibitors
One-piece molded
Chemicals resistant
Unaffected by corrosion or rust
Maintenance free
Product images are for information purposes only. Please check the product description and technical drawing.

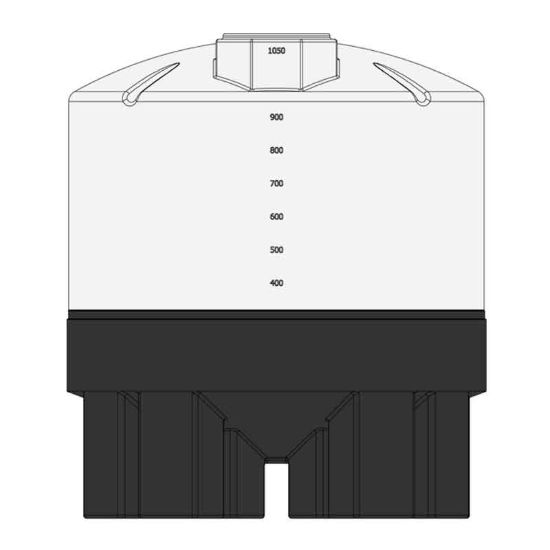

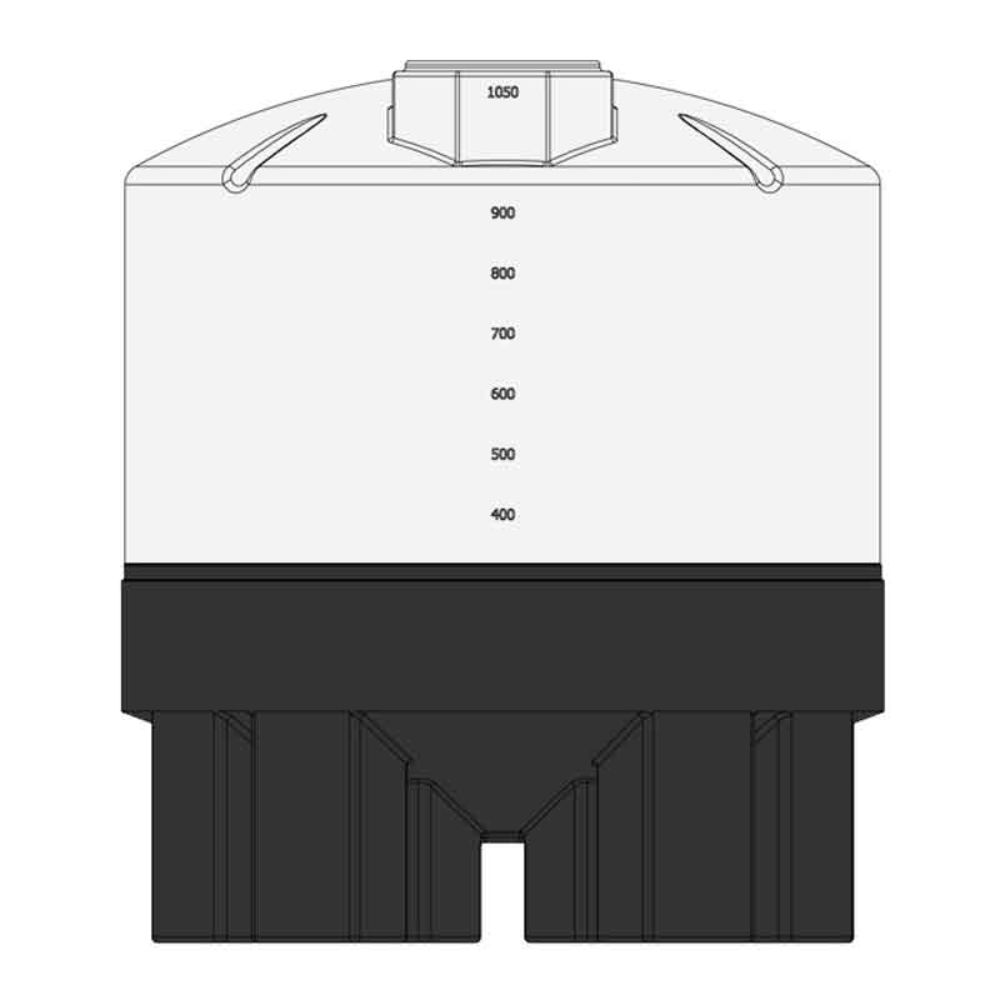

TECHNICAL DRAWINGS

Product Files

Dessins techniques / Technical drawings

RESSOURCES

Product Files

Guide d'achat / Buyer's guide

Buyer's guide - Tanks

Guide d'installation et d'utilisation / Installation and user guide

Guide de la densité relative / Relative density guide

Relative density guide

Guide de résistance aux produits chimiques / Chemical resistance guide

Charte de résistance aux produits chimiques / Chemical resistance chart

Did you know?

GOOD TO KNOW...

We install additional accessories and fittings on our tanks.
For any assembly adapted to your needs such as the installation of inlets, outlets, vents, overflows, welded HDPE flanges and fittings, valves, etc., please contact one of our sales representative at 450-471-2772 Ext. 1.

The closed top cone bottom tanks of the CBN series are designed for stationary use only.
The 15, 30 and 60 US gallon tanks are the only 3 models to have a metal stand that is sold separately, but the stand is required to obtain the manufacturer warranty on the tank. All other models in this series are mounted on a plastic (HDPE) stand that is included with the purchase of the tank. All tanks must be installed on their original stand to obtain the manufacturer’s warranty. Depending on the tank model, the inclination of the base varies between 30° and 57°, so that the cone bottom tanks are suitable for holding different types of liquids or mixtures ranging from viscous to thicker.

These cone bottom plastic tanks are made of UV treated high-density polyethylene for indoor or outdoor use.The resin complies with FDA standards for food contact. Depending on the model, the tanks are designed to contain liquids up to 1.9 specific gravity. The walls are translucent to show the level of the contents and have a graduation molded-in US gallons. All tanks are equipped with a drain, installed in the cone, and with a vented screwed lid. At all times, the tanks must be placed on their original stand, which is specifically designed to prevent pressure points that could damage the walls of the tank.

The cone bottom plastic tanks of the CBN series have multiple uses; for the storage of chemicals, dense or viscous liquids, for the mixing of powder with a liquid, for the preparation of blends of all kinds or for a settling process. They are very interesting when a complete cleaning and drainage is required between each use.

* All dimensions, specifications and capacities may vary slightly and are subject to change without notice.
